Application example

Rotary index table

Requirements

The bearing used must ensure a jerk-free and shock-free motion sequence of the rotary tables for the respective applications as well as high repeatability and high positioning accuracy in the end positions. High payloads are moved.


Solution

Bearing elements LEZ with ball pitch diameter 400 to 1500 mm. Designs with a wide variety of raceway wires and ball combinations are used.

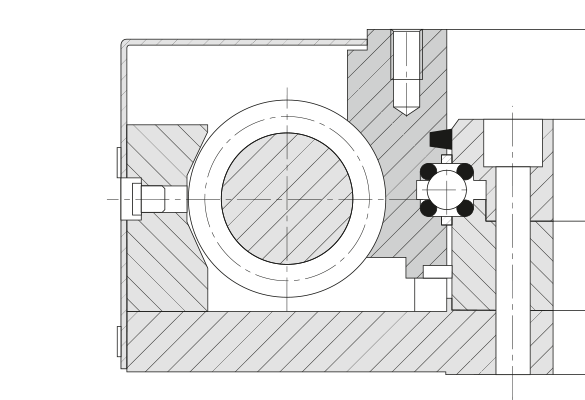

Bearing solution used


Advantages

The Franke bearing elements LEZ used are precisely matched to the various loads and thus guarantee the required jerk-free and shock-free movement of the turntables. Due to the four-point system, the bearings easily absorb the occurring loads.
