Application example Turntable on emergency vehicles

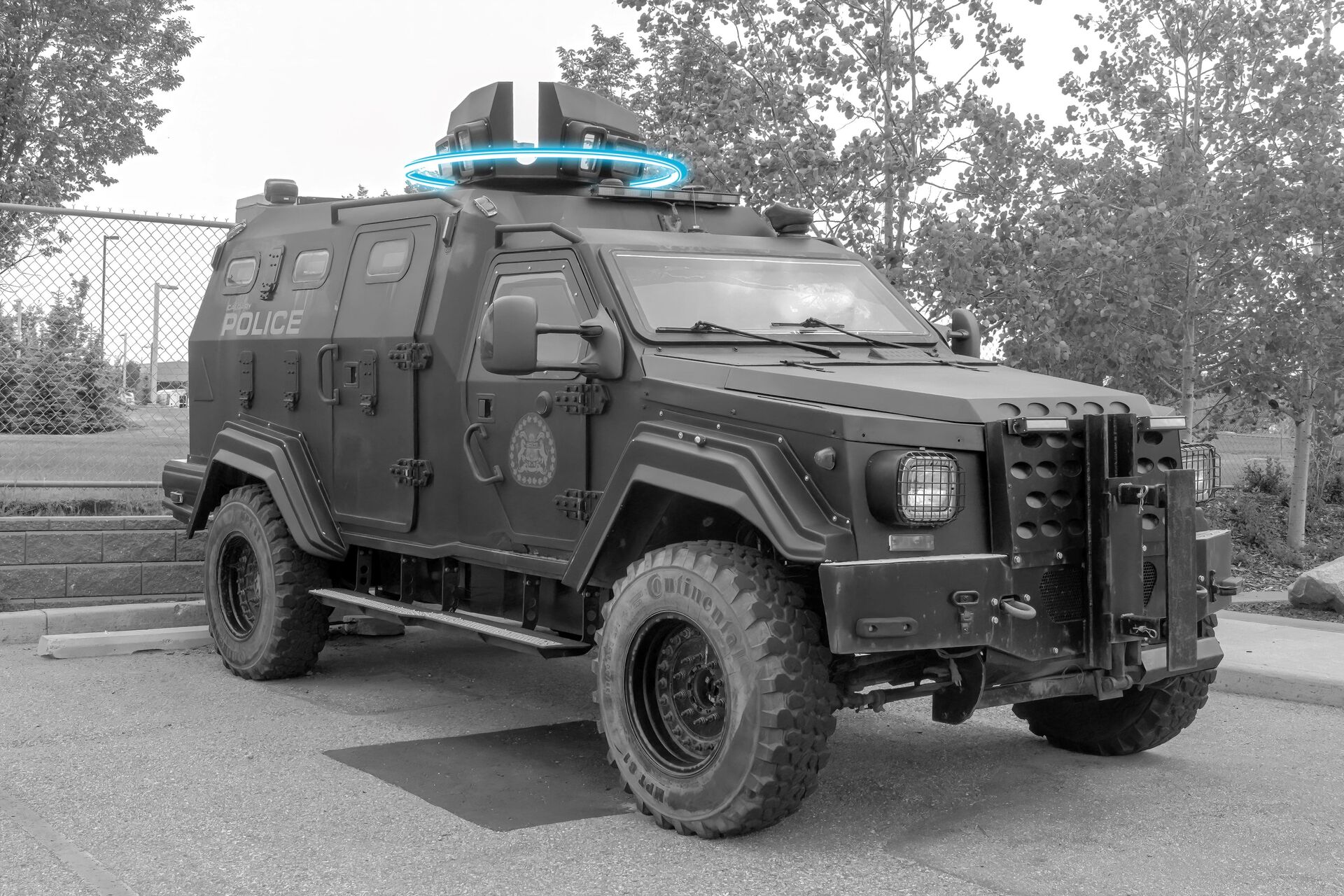

Application example: rotating carriage on emergency vehicles

Franke wire race bearings are ideal for use on vehicles. Their large centre clearance ensures freedom of movement when observing the area or operating equipment. Thanks to the free choice of material and geometry of the enclosing parts, Franke Wire Race Bearings can be integrated directly into the roof structure and require only minimal installation space. The wire race bearing principle of open running wires compensates for temperature fluctuations, vibrations and shocks and functions smoothly and reliably even under robust operating conditions.

Franke wire race bearings type LEL in customized design

Franke bearing elements of type LEL are suitable for high demands on running properties and accuracy. Due to the hardened and CNC-ground raceway and the ideal geometric adaptation of the ball and raceway radius, they have outstanding bearing properties. Bearing elements of type LEL allow the greatest possible freedom of bearing design. The installation space is between 5.9 mm and 20.9 mm. For special requirements, raceway thicknesses of up to 20 mm and ball sizes of up to 50 mm are possible.
