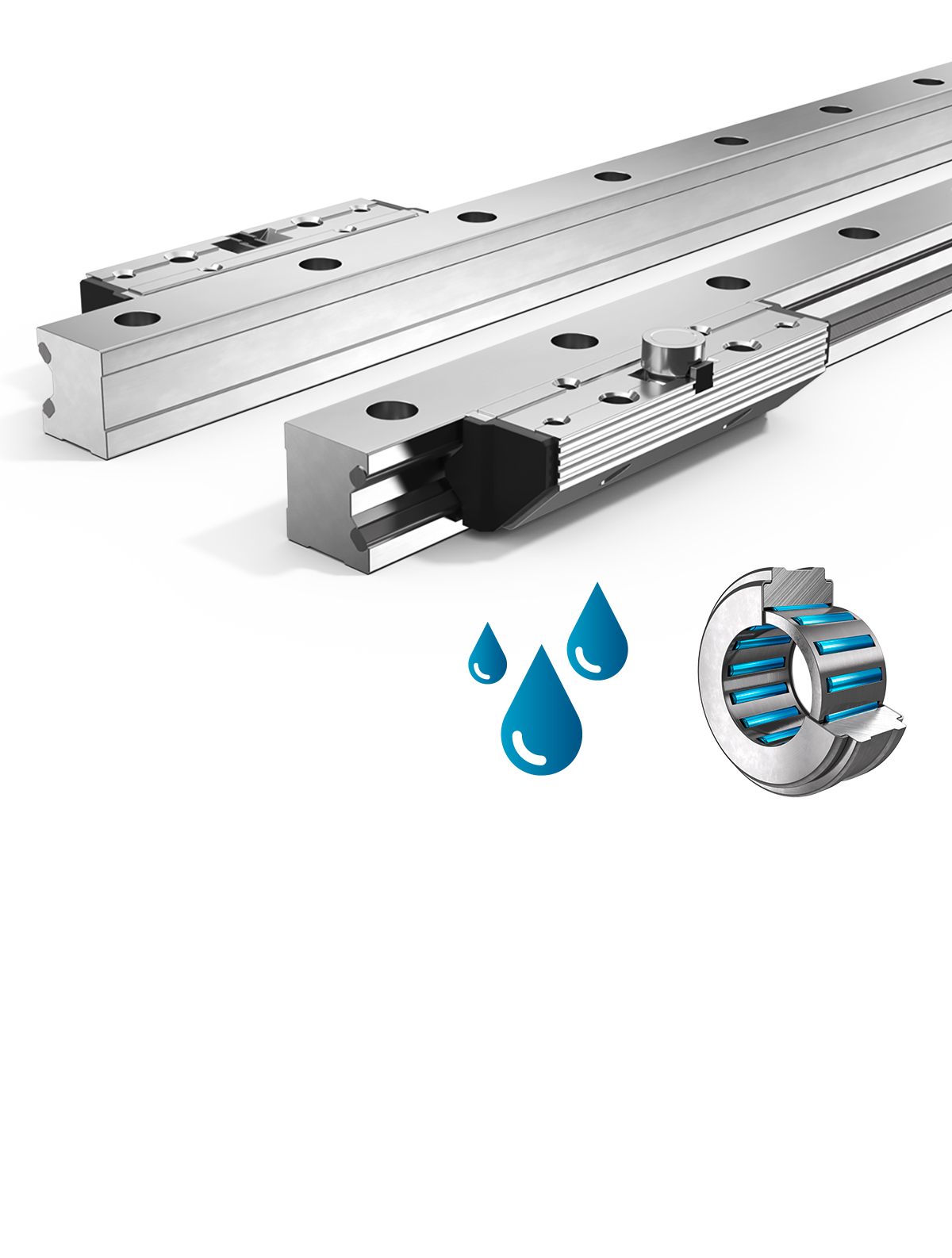

Linear guides Type FDC-R
Pair of single rails and
Pair of Roller Shoes
Non-corrosive
FDC aluminum roller guides are insensitive to harsh environmental conditions.
Description
Franke FDC linear guides are equipped with very quiet, smooth-running, high-quality needle bearings and are made almost entirely of lightweight aluminum. Inlaid raceways made of corrosion-resistant steel make them insensitive to environmental influences as well as moisture or cleaning agents. Rail elements can be manufactured in a length of 200 mm to 4000 mm and, on request, can also be linked endlessly.
Characteristics
| Rollers | Needle bearing |
| Raceway | NIRO steel |
Properties - Evaluation
| Resilience | |
| Dynamics | |
| Corrosion resistant | |
| Non magnetic | |
| Lubricant free | |
| Price |
Technical data
Stroke length
One piece from 200 mm to 4000 mm, connectable on request
Material
Cassette plate, roller shoes,
Rail body: aluminum, anodized
Raceways: corrosion resistant steel
Rollers: corrosion resistant bearing steel
Operating temperature
−20 °C to +80 °C
Maximum speed
10 m/s
Maximum acceleration
40 m/s2
Mounting position
Any
Lubricant
Lifetime-lubricated, maintenance-free
Technical advice
Data tables
Compare data and calculate load cases

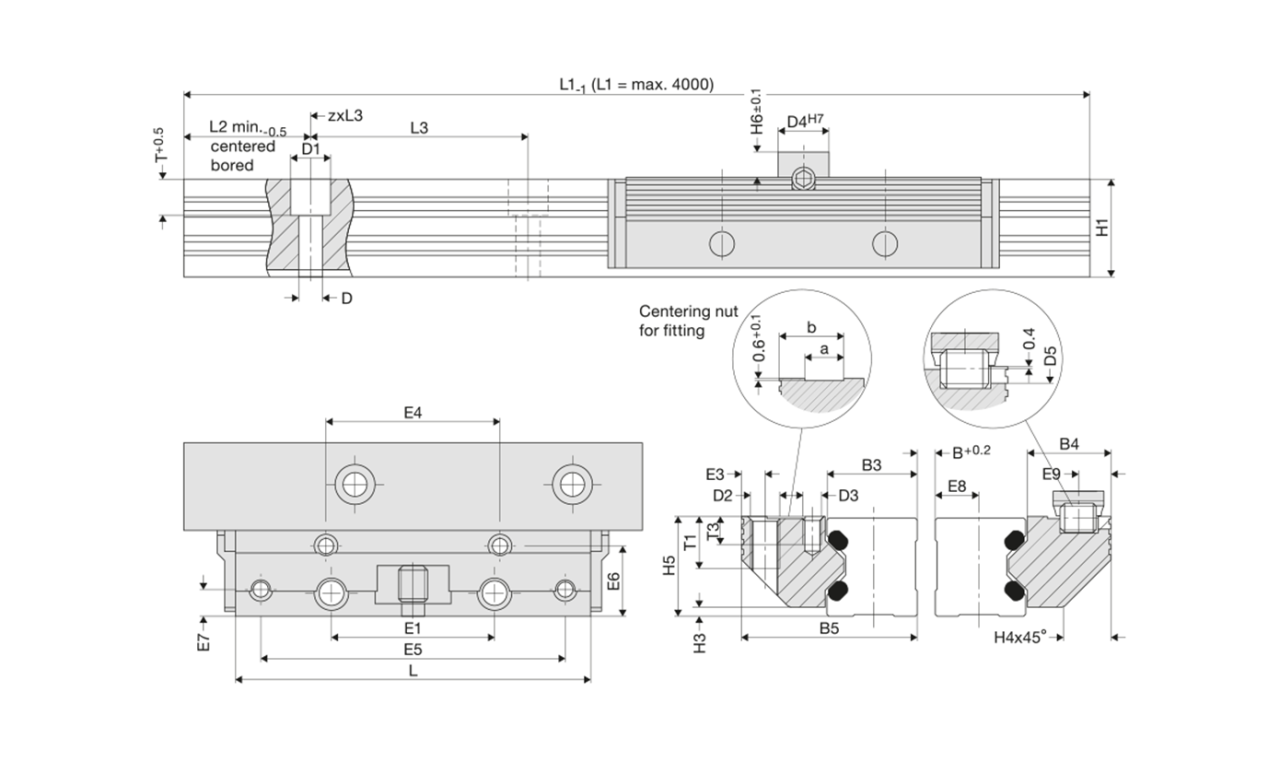

| FDC-R | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Name | Size | Dimensions (mm) |
Order no. | ||||||||||||||
| L | B5 | H5 | B3 | B4 | D3 | D | D1 | D2 | D4 | D5 | E1 | E3 | E4 | E5 | |||
| FDC12E0200 | 12 | 64 | 24,4 | 15,0 | 12,00 | 11,9 | M 3 | 3,4 | 6 | M 4 | 8 | 3 | 25 | 3,4 | 29 | 57 | 84495AN |
| FDC15E0200 | 15 | 78 | 30,9 | 19,0 | 15,25 | 15,2 | M 4 | 4,5 | 8 | M 5 | 10 | 4 | 30 | 4,4 | 34 | 68 | 84395AN |
| FDC20E0200 | 20 | 92 | 40,9 | 23,0 | 20,00 | 20,4 | M 5 | 5,5 | 10 | M 6 | 10 | 4 | 40 | 4,9 | 42 | 80 | 84442AN |
| FDC25E0200 | 25 | 98 | 48,4 | 27,5 | 25,00 | 22,9 | M 5 | 6,6 | 11 | M 8 | 14 | 6 | 45 | 6,4 | 48 | 84 | 84367AN |
| FDC35E0200 | 35 | 135 | 68,9 | 37,5 | 35,00 | 32,9 | M 6 | 9,0 | 15 | M10 | 14 | 6 | 62 | 8,9 | 67 | 117 | 84368AN |
| FDC45E0200 | 45 | 165 | 82,4 | 46,5 | 45,00 | 36,4 | M 8 | 11,0 | 18 | M12 | 14 | 6 | 80 | 9,9 | 83 | 146 | 84369AN |
| FDC-R | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Name | Size | Dimensions (mm) |
Order no. | ||||||||||||
| E6 | E7 | E8 | E9 | H1 | H3 | H4 | H6 | L3 | T | T3 | a | b | |||
| FDC12E0200 | 12 | 9,7 | 3,4 | 5,5 | 4,9 | 14,7 | 1,4 | 5,5 | 4 | 40 | 5,5 | 6,0 | 4,5 | 9,5 | 84495AN |
| FDC15E0200 | 15 | 12,4 | 4,9 | 7,0 | 5,9 | 18,7 | 2,0 | 8,0 | 5 | 60 | 6,0 | 7,5 | 5,0 | 12,5 | 84395AN |
| FDC20E0200 | 20 | 16,9 | 5,9 | 9,5 | 5,9 | 22,6 | 2,0 | 11,0 | 5 | 60 | 8,0 | 8,0 | 7,5 | 16,0 | 84442AN |
| FDC25E0200 | 25 | 19,4 | 7,4 | 12,0 | 8,9 | 27,0 | 2,5 | 13,0 | 7 | 60 | 10,0 | 7,0 | 10,5 | 17,5 | 84367AN |
| FDC35E0200 | 35 | 28,4 | 8,9 | 17,0 | 8,9 | 37,0 | 3,5 | 20,0 | 7 | 80 | 11,5 | 8,5 | 12,5 | 26,0 | 84368AN |
| FDC45E0200 | 45 | 30,9 | 9,9 | 22,0 | 8,9 | 46,0 | 4,0 | 22,0 | 7 | 105 | 14,5 | 9,5 | 15,5 | 31,0 | 84369AN |
| Basic load ratings, weight, length | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Name | Size | Load ratings N |
Moment capacities pair of roller shoes Nm |
Weight kg |
Order no. | CAD Cadenas | Calculate load case | |||||
| C | C0 | M0cx | Mcx | M0cy/M0cz | Mcy/Mcz | PRS | Rail/m | |||||
| FDC12E0200 | 12 | 1100 | 1200 | 0,6 (B+30,3) | 0,6 (B+30,3) | 17 | 16 | 0,07 | 0,40 | 84495AN | ||
| FDC15E0200 | 15 | 2700 | 3000 | 1,5 (B+36,5) | 1,4 (B+36,5) | 52 | 46 | 0,12 | 0,80 | 84395AN | ||
| FDC20E0200 | 20 | 4300 | 5000 | 2,5 (B+47,0) | 2,2 (B+47,0) | 103 | 89 | 0,23 | 1,20 | 84442AN | ||
| FDC25E0200 | 25 | 5800 | 8300 | 4,2 (B+58,4) | 2,9 (B+58,4) | 184 | 128 | 0,35 | 1,80 | 84367AN | ||
| FDC35E0200 | 35 | 10000 | 14500 | 7,3 (B+85,0) | 5,0 (B+85,0) | 452 | 312 | 1,00 | 3,10 | 84368AN | ||
| FDC45E0200 | 45 | 17000 | 20400 | 10,2 (B+109,0) | 8,5 (B+109,0) | 774 | 645 | 1,80 | 5,00 | 84369AN | ||
| Type and size |
| Dyn. load rate C Stat. load rate C0 Moment load rating M0CX MCX M0CX/M0CZ M0CY/M0CZ Weight of roller shoe pair Weight of rail per m |
| CAD Cadenas |
| Calculate load case |
