Washers
5% discount
on your first online order!
In the case of larger bearings and bearing elements, adjustment of the rotational resistance is simplified by using washers between the split inner or outer rings. The washers are made of stainless steel. For the coordination it is advisable to provide a theoretical starting gap of 0.5 mm in the design.

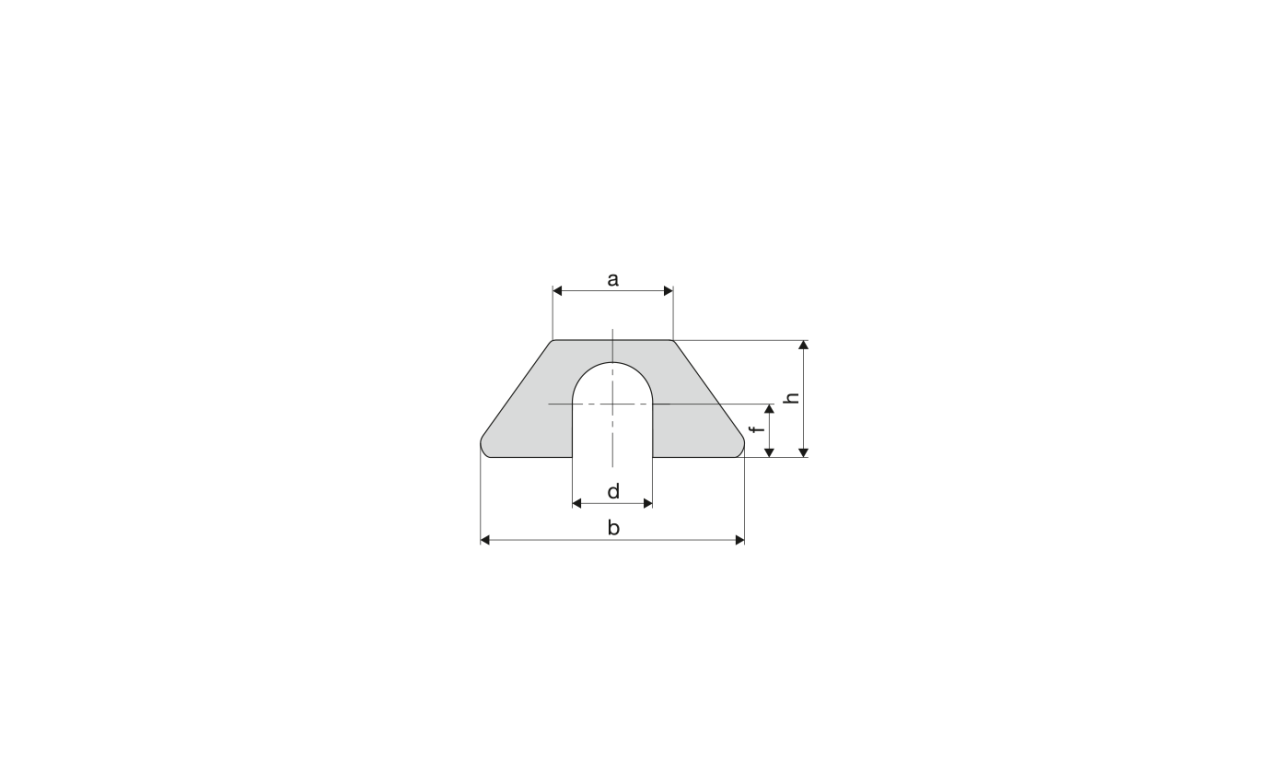

Size | Dimensions mm |
Order no. Thickness mm |
|||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
a | b | d | f | h | 0,025 | 0,1 | 0,15 | 0,2 | 0,25 | 0,3 | 0,5 | 1,0 | |
M 6 | 11,0 | 24,4 | 7,0 | 5,0 | 11,0 | 79015A | 79034A | 79035A | 79036A | 79037A | 79038A | 79039A | 79040A |
M 8 | 14,7 | 34,2 | 9,0 | 6,0 | 13,5 | 79041A | 79023A | 79042A | 79000A | 79026A | 79043A | 79044A | 79045A |
M 10 | 16,4 | 42,3 | 11,0 | 7,0 | 16,0 | 79046A | 79012A | 79010A | 79011A | 79047A | 79048A | 79049A | 79050A |
M 12 | 20,3 | 46,0 | 13,0 | 8,0 | 18,0 | 79118A | 79051A | 79052A | 79053A | 79054A | 79055A | 79056A | 79065A |
M 16 | 25,4 | 54,0 | 17,0 | 11,0 | 24,0 | 79119A | 79024A | 79066A | 79057A | 79058A | 79059A | 79060A | 79061A |
