Linear Guides Type FDG-R
Pair of single rails and
Pair of Roller Shoes
Non-corrosive Low-cost
Aluminum roller guides of type FDG are equipped with stainless steel raceways and ball bearings. They offer insensitivity to environmental influences at an affordable price.
Description
Franke FDG linear guides are suitable for linear motion tasks in almost all industries. They are particularly convincing in cost-sensitive applications in harsh environments and with reduced demands on load capacity. Rail elements can be manufactured in a length of 200 mm to 4000 mm and, on request, can also be linked endlessly.
Characteristics
| Rollers | Ball bearing |
| Raceway | NIRO steel |
Properties - Evaluation
| Resilience | |
| Dynamics | |
| Corrosion resistant | |
| Non magnetic | |
| Lubricant free | |
| Price |
Technical data
Stroke length
One piece from 200 mm to 4000 mm, connectable on request
Material
Cassette plate, roller shoes,
Rail body: aluminum, anodized
Raceways: NIRO steel
Rollers: NIRO steel
Operating temperature
−20 °C to +80 °C
Maximum speed
10 m/s
Maximum acceleration
40 m/s2
Mounting position
Any
Lubricant
Lifetime-lubricated, maintenance-free
Technical advice
Data tables
Compare data and calculate load cases

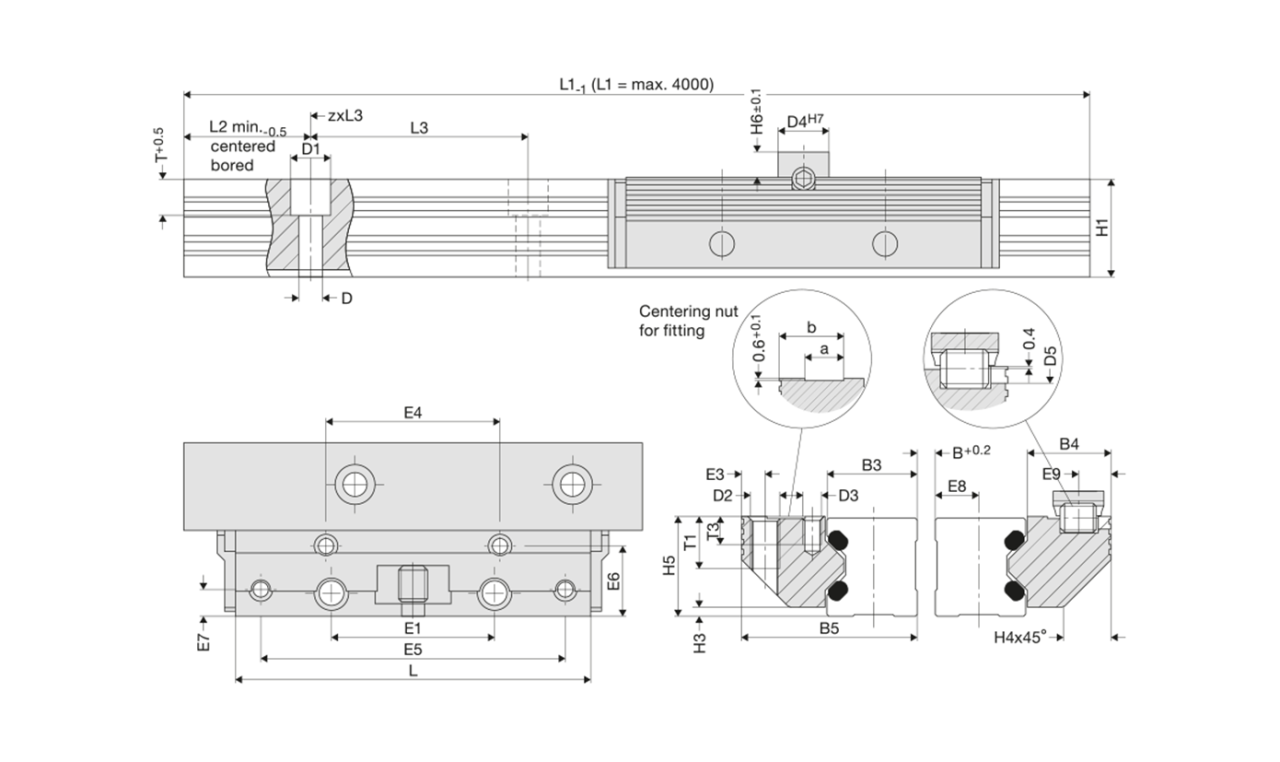

| FDG-R | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Name | Size | Dimensions (mm) |
Order no. | ||||||||||||||
| L | B5 | H5 | B3 | B4 | D3 | D | D1 | D2 | D4 | D5 | E1 | E3 | E4 | E5 | |||
| FDG12E0200 | 12 | 64 | 24,4 | 15,0 | 12,00 | 11,9 | M 3 | 3,4 | 6 | M 4 | 8 | 3 | 25 | 3,4 | 29 | 57 | 84495LN |
| FDG15E0200 | 15 | 78 | 30,9 | 19,0 | 15,25 | 15,2 | M 4 | 4,5 | 8 | M 5 | 10 | 4 | 30 | 4,4 | 34 | 68 | 84395LN |
| FDG20E0200 | 20 | 92 | 40,9 | 23,0 | 20,00 | 20,4 | M 5 | 5,5 | 10 | M 6 | 10 | 4 | 40 | 4,9 | 42 | 80 | 84442LN |
| FDG25E0200 | 25 | 98 | 48,4 | 27,5 | 25,00 | 22,9 | M 5 | 6,6 | 11 | M 8 | 14 | 6 | 45 | 6,4 | 48 | 84 | 84367LN |
| FDG35E0200 | 35 | 135 | 68,9 | 37,5 | 35,00 | 32,9 | M 6 | 9,0 | 15 | M10 | 14 | 6 | 62 | 8,9 | 67 | 117 | 84368LN |
| FDG45E0200 | 45 | 165 | 82,4 | 46,5 | 45,00 | 36,4 | M 8 | 11,0 | 18 | M12 | 14 | 6 | 80 | 9,9 | 83 | 146 | 84369LN |
| FDG-R | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Name | Size | Dimensions (mm) |
Order no. | ||||||||||||
| E6 | E7 | E8 | E9 | H1 | H3 | H4 | H6 | L3 | T | T3 | a | b | |||
| FDG12E0200 | 12 | 9,7 | 3,4 | 5,5 | 4,9 | 14,7 | 1,4 | 5,5 | 4 | 40 | 5,5 | 6,0 | 4,5 | 9,5 | 84495LN |
| FDG15E0200 | 15 | 12,4 | 4,9 | 7,0 | 5,9 | 18,7 | 2,0 | 8,0 | 5 | 60 | 6,0 | 7,5 | 5,0 | 12,5 | 84395LN |
| FDG20E0200 | 20 | 16,9 | 5,9 | 9,5 | 5,9 | 22,6 | 2,0 | 11,0 | 5 | 60 | 8,0 | 8,0 | 7,5 | 16,0 | 84442LN |
| FDG25E0200 | 25 | 19,4 | 7,4 | 12,0 | 8,9 | 27,0 | 2,5 | 13,0 | 7 | 60 | 10,0 | 7,0 | 10,5 | 17,5 | 84367LN |
| FDG35E0200 | 35 | 28,4 | 8,9 | 17,0 | 8,9 | 37,0 | 3,5 | 20,0 | 7 | 80 | 11,5 | 8,5 | 12,5 | 26,0 | 84368LN |
| FDG45E0200 | 45 | 30,9 | 9,9 | 22,0 | 8,9 | 46,0 | 4,0 | 22,0 | 7 | 105 | 14,5 | 9,5 | 15,5 | 31,0 | 84369LN |
| Basic load ratings, weight, length | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Name | Size | Load ratings N |
Moment capacities pair of roller shoes Nm |
Weight kg |
Order no. | CAD Cadenas | Calculate load case | |||||
| C | C0 | M0cx | Mcx | M0cy/M0cz | Mcy/Mcz | PRS | Rail/m | |||||
| FDG12E0200 | 12 | 620 | 170 | 0,08 (B+30,3) | 0,30 (B+30,3) | 2,4 | 8,9 | 0,07 | 0,40 | 84495LN | ||
| FDG15E0200 | 15 | 700 | 230 | 0,10 (B+36,5) | 0,35 (B+36,5) | 4 | 12 | 0,12 | 0,80 | 84395LN | ||
| FDG20E0200 | 20 | 940 | 300 | 0,15 (B+47,0) | 0,50 (B+47,0) | 6 | 19 | 0,23 | 1,20 | 84442LN | ||
| FDG25E0200 | 25 | 1500 | 700 | 0,35 (B+58,4) | 0,70 (B+58,4) | 15 | 32 | 0,35 | 1,80 | 84367LN | ||
| FDG35E0200 | 35 | 3100 | 1400 | 0,70 (B+85,0) | 1,50 (B+85,0) | 42 | 95 | 1,00 | 3,10 | 84368LN | ||
| FDG45E0200 | 45 | 6300 | 2700 | 1,40 (B+109,0) | 3,10 (B+109,0) | 103 | 238 | 1,80 | 5,00 | 84369LN | ||
| Type and size |
| Dyn. load rate C Stat. load rate C0 Moment load rating M0CX MCX M0CX/M0CZ M0CY/M0CZ Weight of roller shoe pair Weight of rail per m |
| CAD Cadenas |
| Calculate load case |
