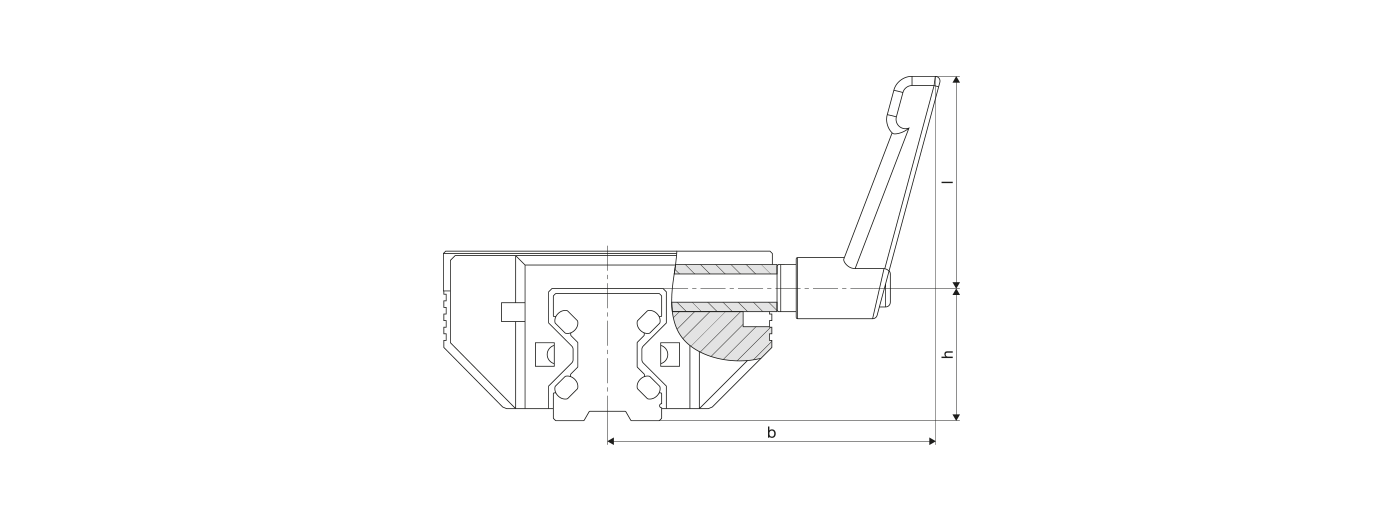

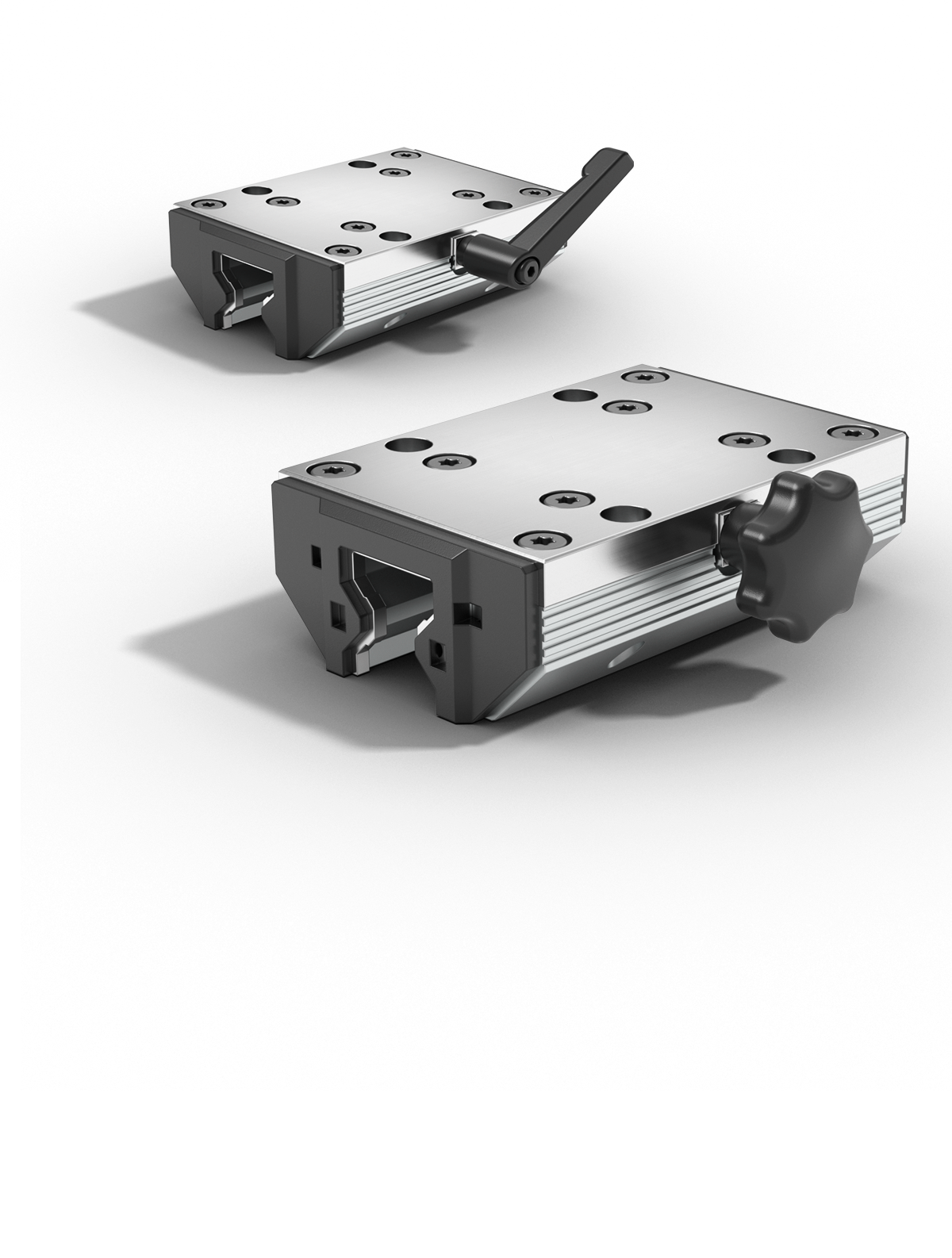

Cassette with clamp lever
Cassettes with clamping levers allow the cassettes to be locked in any position along the guideway. The clamping acts without force on the guide system. It is used for manually movable devices, clamping and holding stops, delivery of tools and processing parts. We would be happy to advise you on application and design.
| Size | Dimensions mm |
Holding force N |
Order no. | ||||
|---|---|---|---|---|---|---|---|
| Thread | b | h | l | Standard | Niro | ||
| 15 | M 5 | 59,5 | 19,0 | 45 | 200 | 84396AH | 84396NH |
| 20 | M 5 | 67,5 | 23,0 | 45 | 250 | 84441AH | 84441NH |
| 25 | M 6 | 71,0 | 28,0 | 45 | 250 | 84363AH | 84363NH |
| 35 | M 8 | 96,0 | 38,5 | 63 | 350 | 84364AH | 84364NH |
| 45 | M 10 | 116,0 | 48,0 | 78 | 750 | 84365AH | 84365NH |

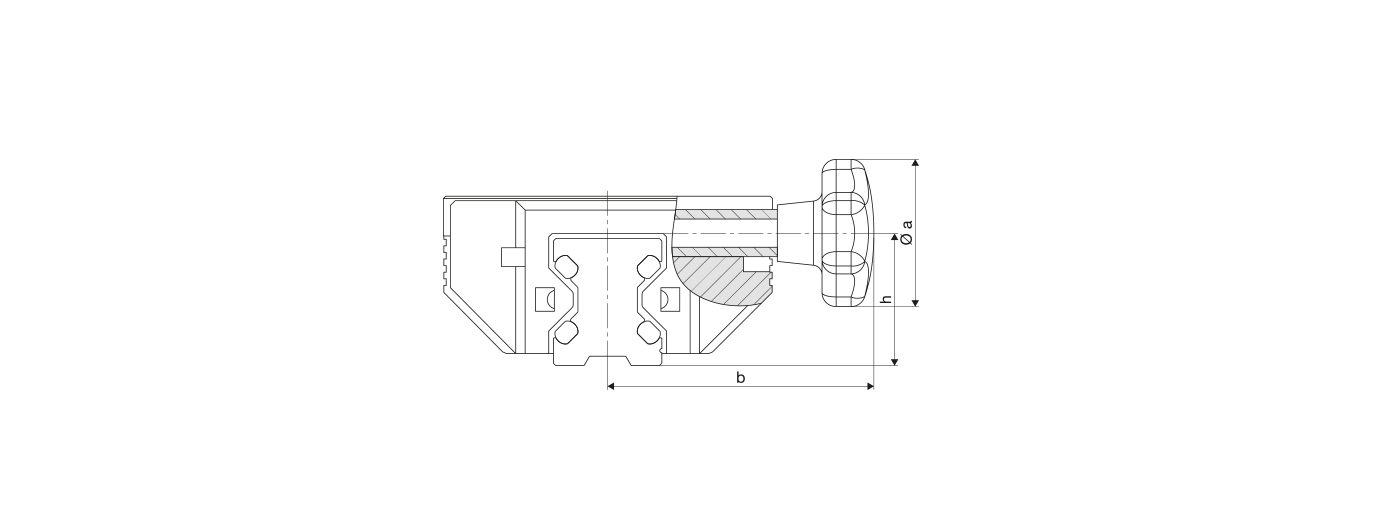

Cassette with star grip - standard
Cassette with star grip or clamping lever for locking at any position on the guide track. The clamping acts without force on the guide system. It is used for manually movable devices, clamping and holding stops, delivery of tools and processing parts. Please consult us for further information.
| Size | Dimensions mm |
Holding force N |
Order no. | |||
|---|---|---|---|---|---|---|
| Ø a | b | h | Standard | Niro | ||
| 15 | 25 | 41 | 19,0 | 200 | 84396AK | 84396NK |
| 20 | 25 | 49 | 23,0 | 250 | 84441AK | 84441NK |
| 25 | 32 | 56 | 28,0 | 250 | 84363AK | 84363NK |
| 35 | 50 | 83 | 38,5 | 350 | 84364AK | 84364NK |
| 45 | 63 | 101 | 48,0 | 750 | 84365AK | 84365NK |
