Cassette mounting from below
5% discount
on your first online order!

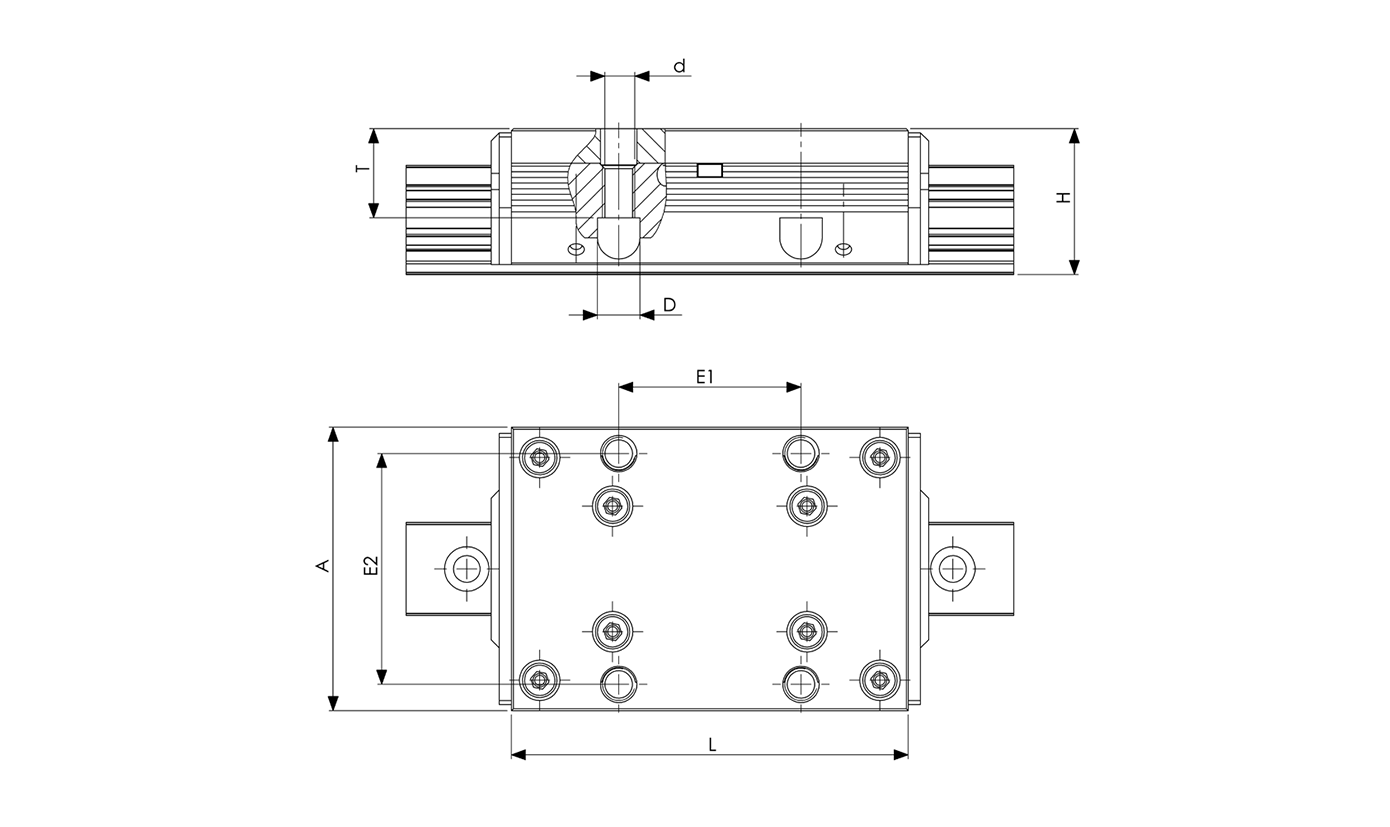

In the case of cassettes for screwing from below, the existing mounting holes are reworked so that screwing from below is possible. Please note any deviating positions of the holes and screw connection sizes.
| Size | Dimensions mm |
|||||||
|---|---|---|---|---|---|---|---|---|
| A | L | H | E1 | E2 | D | d | T | |
| 12 | 37 | 64 | 19 | 29 | 30 | 6,0 | 3,4 | 11,5 |
| 15 | 47 | 78 | 24 | 34 | 38 | 8,0 | 4,2 | 14,0 |
| 20 | 63 | 92 | 30 | 40 | 53 | 11,0 | 6,6 | 17,0 |
| 25 | 70 | 98 | 36 | 45 | 57 | 11,5 | 6,8 | 22,0 |
| 35 | 100 | 135 | 48 | 62 | 82 | 14,0 | 8,5 | 24,0 |
| 45 | 120 | 165 | 60 | 80 | 100 | 18,0 | 11,0 | 38,5 |
