Linear Guides Type FDH-R

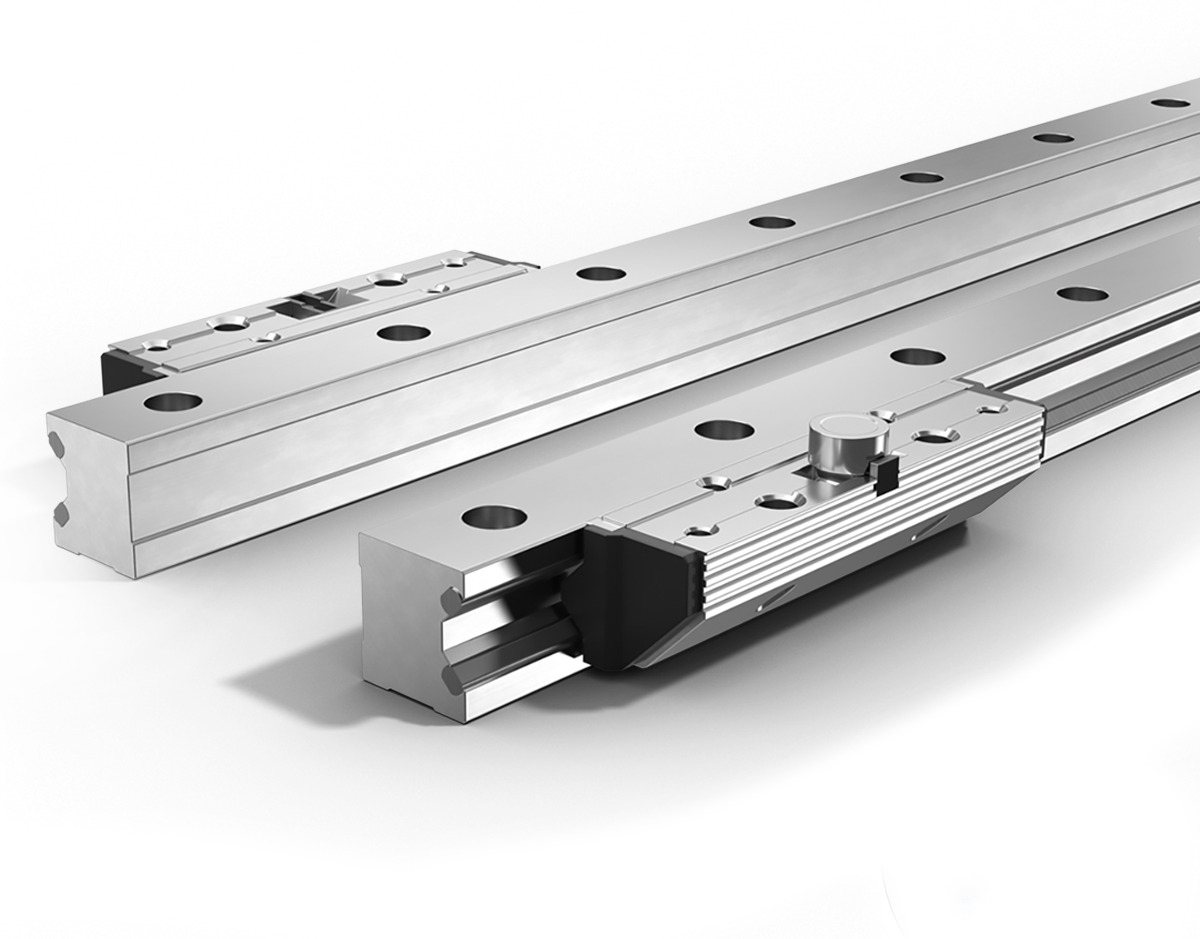

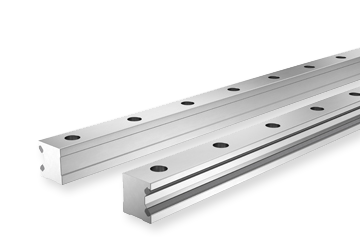

Pair of single rails and

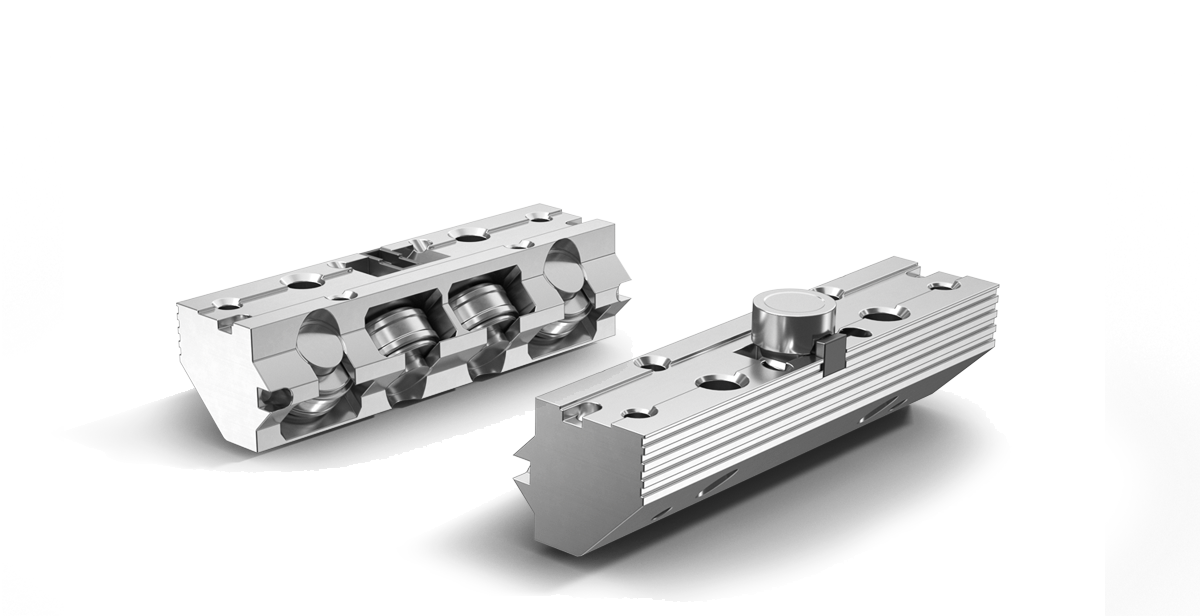

Pair of Roller Shoes
Highly dynamic
5% discount
on your first online order!
Aluminum roller guides of type FDH convince with their particularly quick response and smooth running even at high acceleration.
Description
Franke FDH linear guides are suitable for linear movement tasks, especially in dynamic pick-&-place applications. They have rollers with angular contact ball bearings for the highest acceleration and speed values, for example when using linear motors as the drive source. Rail elements can be manufactured in a length of 200 mm to 4000 mm and, on request, can also be linked endlessly.
Characteristics
| Rollers | Angular contact ball bearings |
| Raceway | Spring steel, standard |
Properties - Evaluation
| Resilience | |
| Dynamics | |
| Corrosion resistant | |
| Non magnetic | |
| Lubricant free | |
| Price |
Technical data
Stroke length
One piece from 200 mm to 4000 mm, connectable on request
Material
Cassette plate, roller shoes,
Rail body: aluminum, anodized
Raceways: spring steel
Rollers: steel
Operating temperature
−20 °C to +80 °C
Maximum speed
10 m/s
Maximum acceleration
100 m/s2
Mounting position
Any
Lubricant
Lifetime-lubricated, maintenance-free
Technical advice
Data tables
Compare data and calculate load cases
| FDH-R | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size | Dimensions mm |
||||||||||||||
| L | B5 | H5 | B3 | B4 | D3 | D | D1 | D2 | D4 | D5 | E1 | E3 | E4 | E5 | |
| 25 | 98 | 48,4 | 27,5 | 25,00 | 22,9 | M 5 | 6,6 | 11 | M 8 | 14 | 6 | 45 | 6,4 | 48 | 84 |
| 35 | 135 | 68,9 | 37,5 | 35,00 | 32,9 | M 6 | 9,0 | 15 | M10 | 14 | 6 | 62 | 8,9 | 67 | 117 |
| 45 | 165 | 82,4 | 46,5 | 45,00 | 36,4 | M 8 | 11,0 | 18 | M12 | 14 | 6 | 80 | 9,9 | 83 | 146 |
| FDH-R | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size | Dimensions mm |
||||||||||||
| E6 | E7 | E8 | E9 | H1 | H3 | H4 | H6 | L3 | T | T3 | a | b | |
| 25 | 19,4 | 7,4 | 12,0 | 8,9 | 27,0 | 2,5 | 13,0 | 7 | 60 | 10,0 | 5,0 | 10,5 | 17,5 |
| 35 | 28,4 | 8,9 | 17,0 | 8,9 | 37,0 | 3,5 | 20,0 | 7 | 80 | 11,5 | 8,5 | 12,5 | 26,0 |
| 45 | 30,9 | 9,9 | 22,0 | 8,9 | 46,0 | 4,0 | 22,0 | 7 | 105 | 14,5 | 9,5 | 15,5 | 31,0 |
| Basic load ratings, weight, length | MyFranke | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Size | Load ratings N |
Moment capacities pair of roller shoes Nm |
Weight kg |
CAD-Download Calculate loads |
|||||
| C | C0 | M0cx | Mcx | M0cy/M0cz | Mcy/Mcz | PRS | Rail/m | ||
| 25 | 7500 | 3700 | 1,8 (B+58,4) | 3,7 (B+58,4) | 81 | 165 | 0,35 | 1,80 |
Register now to get |
| 35 | 13400 | 8100 | 4,0 (B+85,0) | 6,7 (B+85,0) | 250 | 416 | 1,00 | 3,10 | |
| 45 | 24300 | 14400 | 7,2 (B+109,0) | 12,2 (B+109,0) | 548 | 924 | 1,80 | 5,00 | |
| Type and size |
| Dyn. load rate C Stat. load rate C0 Moment load rating M0CX MCX M0CX/M0CZ M0CY/M0CZ Weight of roller shoe pair Weight of rail per m |
