The bearing assemblies are equipped with the S10 boot seal as standard. Temperature: –30 ° C to +80 ° C (NBR). Max. Peripheral speed: 5 m / s.
For the sealing of the construction (e.g. when using a bearing element) the seal can be ordered by the meter. The joint is then glued with Loctite 401® adhesive.
Special seals are available on request. Franke offers Viton seals for high temperatures or aggressive media.

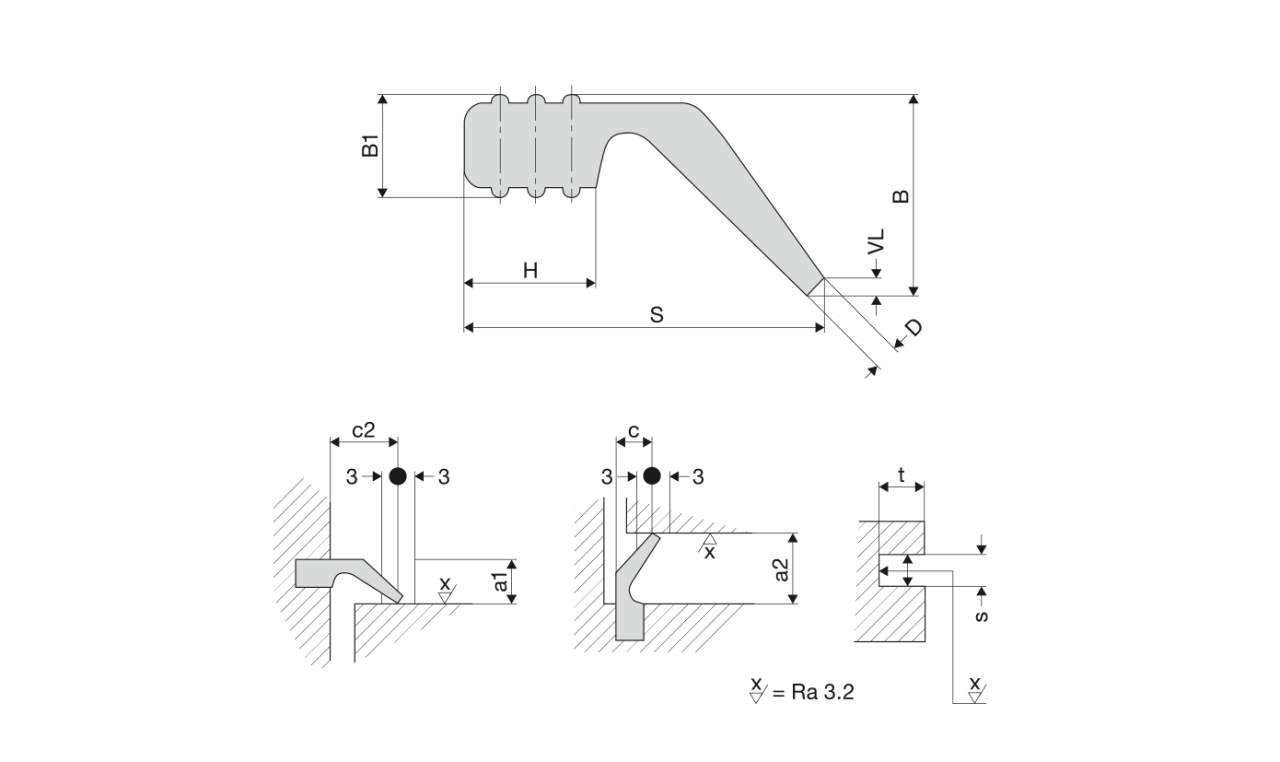

| Profile | Dimensions mm |
Material | Preload mm |
Weight kg/m |
Order no. | |||
|---|---|---|---|---|---|---|---|---|
| S | H | B±0,3 | B1±0,2 | D | VL1 | |||
| 09 | 3,5 | 4,8 | 2,5 | 0,8 | Perbunan 70NBR/221 | 1,0 | 0,026 | 00928 |
| 10 | 4,2 | 5,3 | 3,0 | 0,8 | Perbunan 70NBR/221 | 0,5...1,5 | 0,026 | 09080 |
| 10 | 4,2 | 5,3 | 3,0 | 0,8 | FKM 70 (Viton) | 0,5...1,5 | 0,026 | 102530 |
| 15 | 5,5 | 8,1 ± 0,7 | 4,3 ± 0,5 | 1,0 | Perbunan 70NBR/221 | 0,5...2,0 | 0,051 | 09190 |
| Profile | Installation dimensions mm |
Groove dimensions mm |
||||
|---|---|---|---|---|---|---|
| S | c | c2 | a1 | a2 | t+0,2 | s |
| 09 | 4,5 + 1 | 3,65 + 1 | 3,1...4,1 | 4,0...5,0 | 3,5 | 2,35+/-0,05 |
| 10 | 5 + 1 | 5,5 + 1 | 3,6...4,6 | 4,3...5,3 | 4,2 | 2,9 + 0,1 |
| 15 | 8 + 1,5 | 9,0 + 1,5 | 6,3...7,7 | 7,5...9,0 | 5,5 | 3,9 + 0,1 |
