Stop screws for guide rails
5% discount
on your first online order!

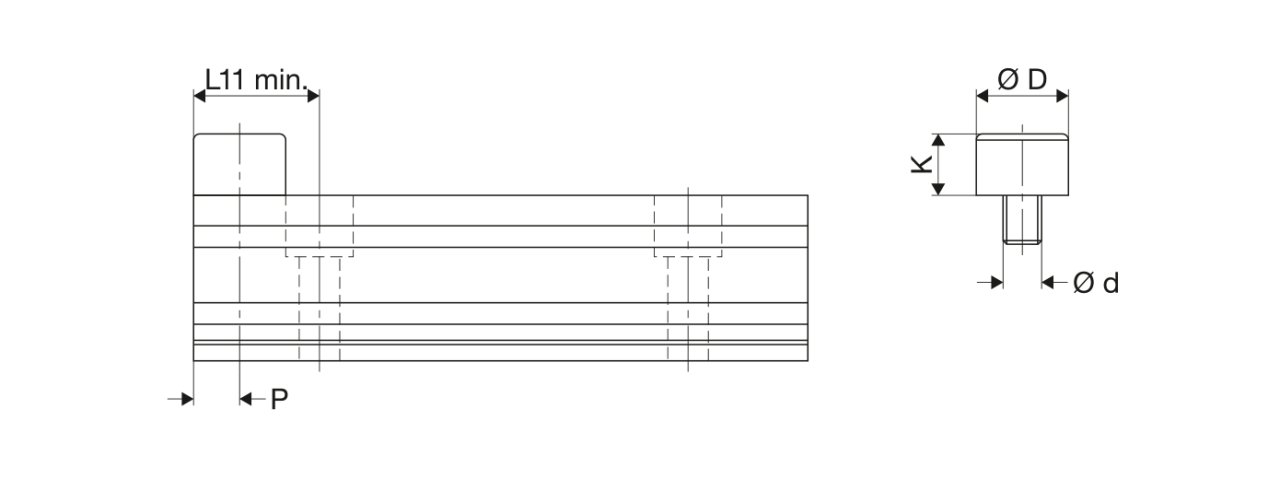

The stop screws are screwed into the thread (option) of the guide rails. An attached rubber cap dampens the stop. For rail lengths with initial hole dimensions below L11 min. we deliver the drilling pattern offset by half a drilling jump.
Material: chlorobutadiene rubber (Cr), color black.
Name | Size | Dimensions mm |
Order no. | ||||
---|---|---|---|---|---|---|---|
d | D | K | L11 min. | P | |||
FDA12-20M05 | 12 | M 5 | 12 | 8 | 15,0 | 6,0 | 63504A |
FDA12-20M05 | 15 | M 5 | 12 | 8 | 16,0 | 6,0 | 63504A |
FDA12-20M05 | 20 | M 5 | 12 | 8 | 17,0 | 6,0 | 63504A |
FDA25M06 | 25 | M 6 | 15 | 10 | 20,5 | 7,5 | 63505A |
FDA35M08 | 35 | M 8 | 19 | 13 | 26,5 | 9,5 | 63506A |
FDA45M10 | 45 | M 10 | 24 | 16 | 33,0 | 12,0 | 63507A |
