Application example Antenna bearing with direct drive

Specification

Application example Antenna bearing with direct drive

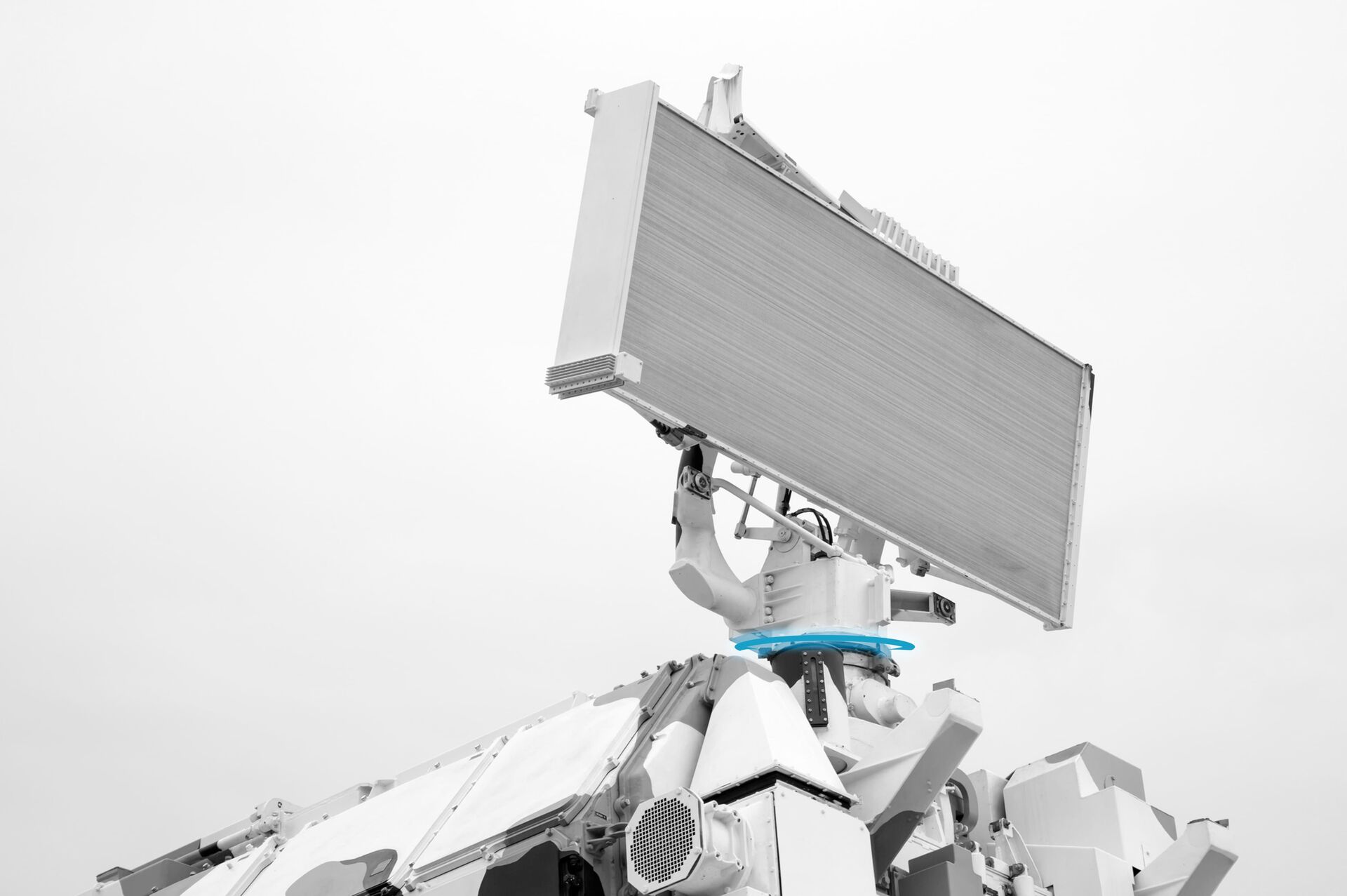

The antenna is mounted on a telescopic boom that can be moved upwards to improve reception in rough terrain. An autonomously driven bearing simplifies the design of the drive and significantly reduces the number of components required. Only power and data cables need to be routed upwards, which can be done easily and in a space-saving manner thanks to the large centre clearance of the bearing.


Solution

Customized slewing ring with direct drive type LTD in special design


Bearing type


Advantages

Bearings with direct drive are suitable for applications where high performance and low space requirements are important criteria. The integration of the drive into the bearing housing means that wear-prone assemblies for the transmission of drive power such as toothed belts, pinions or gears can be omitted. This reduces maintenance costs, increases efficiency and improves both the speed range and positioning accuracy.

Konstruktionsbeispiel Drehtisch mit Torque-Motor

Whitepaper slewing ring with torque drive

Find out more about slewing rings with integrated torque motor and why it is superior to other drive types in almost every respect.

In future, dispense with components such as gearboxes and drive pinions.



More about the products
