Slewing ring made of plastics
Ball bearing type LVL
| Unit price: |  |
-,- EUR |
| Price | |
-,- EUR |
Material Inner/Outer ring: Polyoxymethylene (POM) Ball races: Non corrrosive Steel (1.4310) Rolling elements: Non corrosive Steel Cage: Polyamid (PA12)
Gearing DIN 3967, quality 8e25, straight toothed, module see table below
Operating temperature -10 °C to +80 °C, short-term up to +100 °C
Peripheral speed Max. 4 m/s
Lubricant Klüber UH1 14-151
Relubrication Via grease nipples to DIN 3405
| Smooth running | |
| Resilience | |
| Speed | |
| Stiffness | |
| Weight | |
| Price |
Data Table
| Dimensions mm | Fastening per Ring | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Name | KKØ mm | Ds | Dd | H | H1 | Dg | Tse | T1g | Da | DI | TkA | TkI | ||
| LVL-0100 | 100 | 0 | 6.6 | 24 | 0 | 0 | 0 | 0 | 50 | 135 | 65 | |||
| LVL-0150 | 150 | 0 | 6.6 | 24 | 0 | 0 | 0 | 0 | 100 | 185 | 115 | |||
| LVL-0200 | 200 | 0 | 6.6 | 24 | 0 | 0 | 0 | 0 | 150 | 235 | 165 | |||
| Load Ratings kn | Static Moment kNm | ||||||
|---|---|---|---|---|---|---|---|
| Name | KKØ mm | C0a | C0r | Ca | Cr | C0m | Weight kg |
| LVL-0100 | 100 | 5.6 | 2 | 5.6 | 5.6 | 0,1 | 0,50 |
| LVL-0150 | 150 | 8.1 | 2.9 | 8.1 | 8.1 | 0,1 | 0,80 |
| LVL-0200 | 200 | 10.6 | 3.8 | 10.6 | 10.6 | 0,1 | 1,00 |
Rundlauf_LVK_LVL_LVM
Drehwiderstand-LVK_LVL_LVM

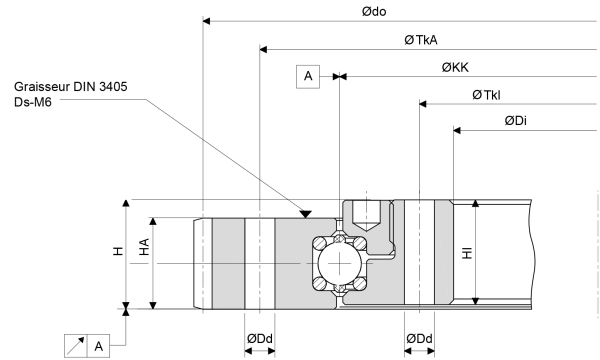

LVL_Z_FR8IRb8GnZAnB0r
