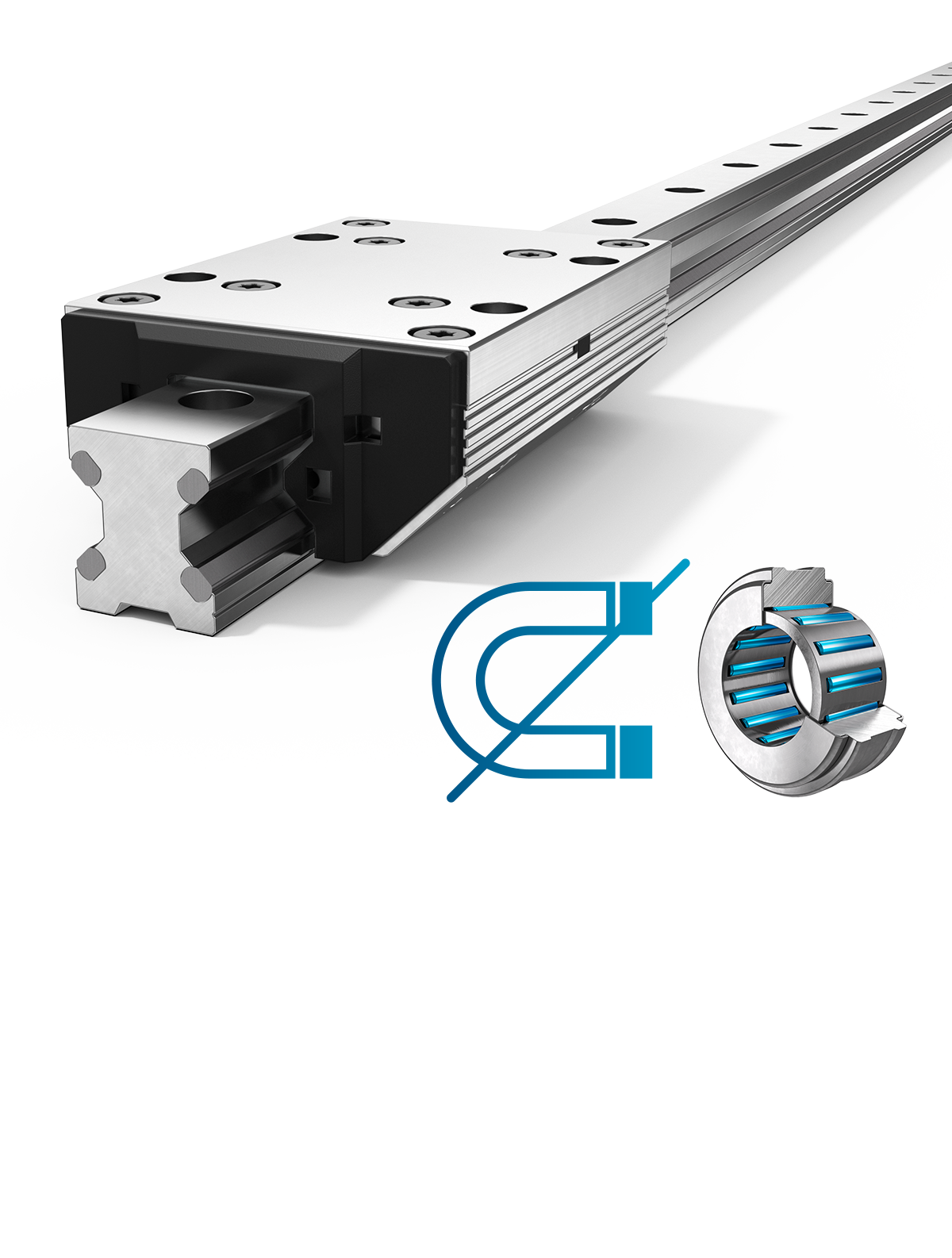

Profile rail with carriage
Non magnetic, type FDD
FDD25K_0200
| Unit price: |  |
-,- EUR |
| Price Profile rail | |
-,- EUR/m |
| Price Carriage | |
-,- EUR/m |
| Total price: | |
-,- EUR |
Stroke length
Material
Rail body: aluminum, anodized
Raceways: non-magnetic steel
Rollers: non-magnetic bearing steel
Operating temperature
Maximum speed
Mounting position
Lubricant
| Roller: | Needle bearing |
| Raceway: | Non-magnetic steel |
| Resilience | |
| Dynamics | |
| Corrosion resistant | |
| Non magnetic | |
| Lubricant free | |
| Price |

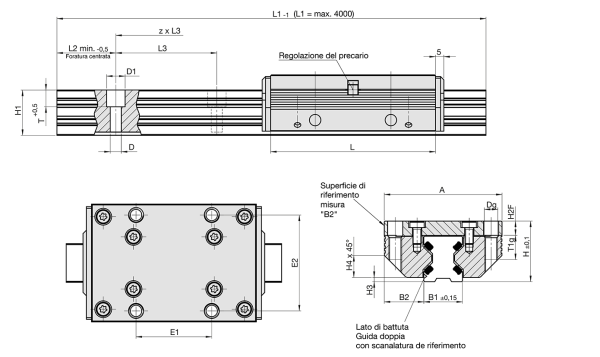

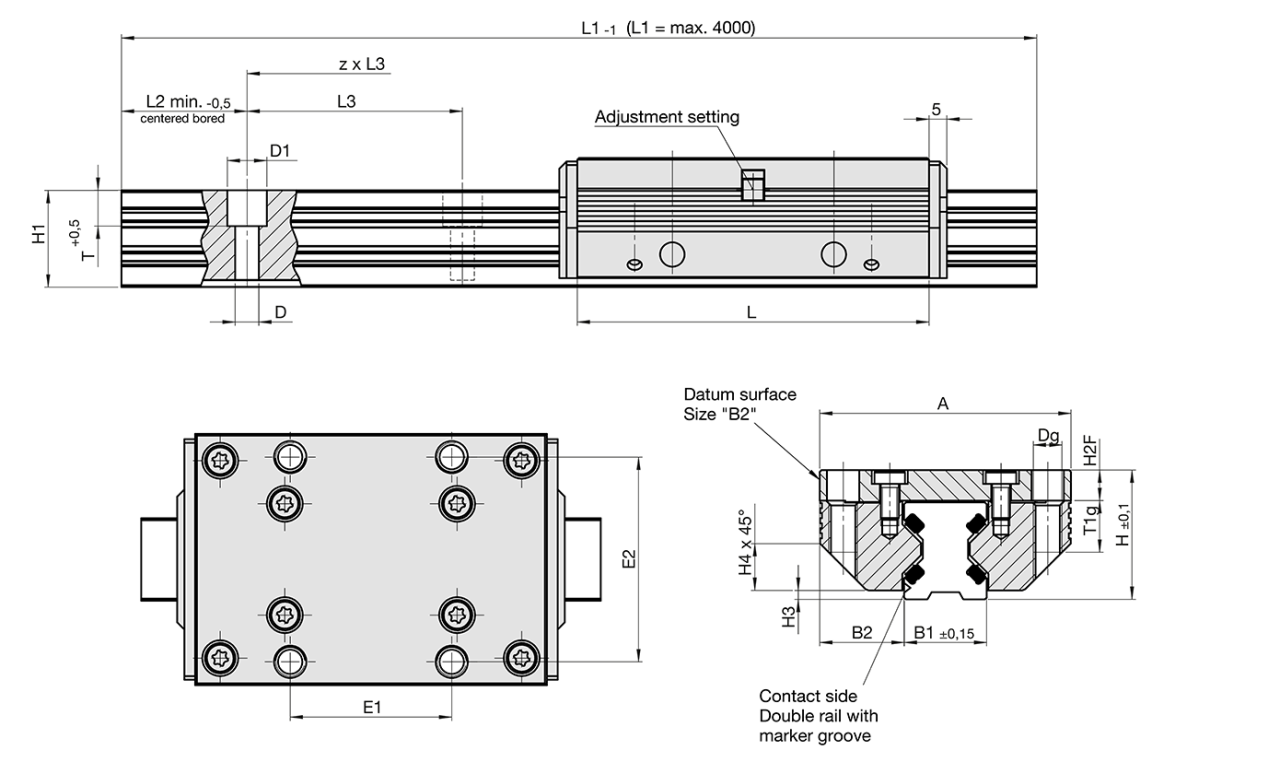

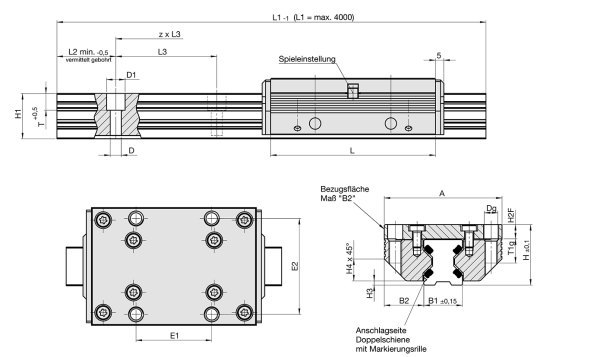

Data Table
| Size | Dimensions mm | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| A | L | H | B1 | B2 | D | D1 | Dg | E1 | |
| 25 | 70 | 98 | 36 | 23 | 23.5 | 6.6 | 11 | M8 | 45 |
| Size | Dimensions mm | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| E2 | H1 | H2F | H3 | H4 | L2 | L3 | T | T1g | |
| 25 | 57 | 27,0 | 8.5 | 2.5 | 13 | 10 | 60 | 10,0 | 16 |
| Size | Load Ratings N | Moment capacities carriage Nm | Weight kg | |||||
|---|---|---|---|---|---|---|---|---|
| C | C0 | M0cx | Mcx | M0cy/M0cz | Mcy/Mcz | Weight | Rail/m | |
| 25 | 1200 | 1600 | 25,0 | 18,0 | 35 | 25 | 0,50 | 1,60 |
