Bearing with profiled raceways

Roller bearing type LEW

616029

LEW4-0150

Type Selection

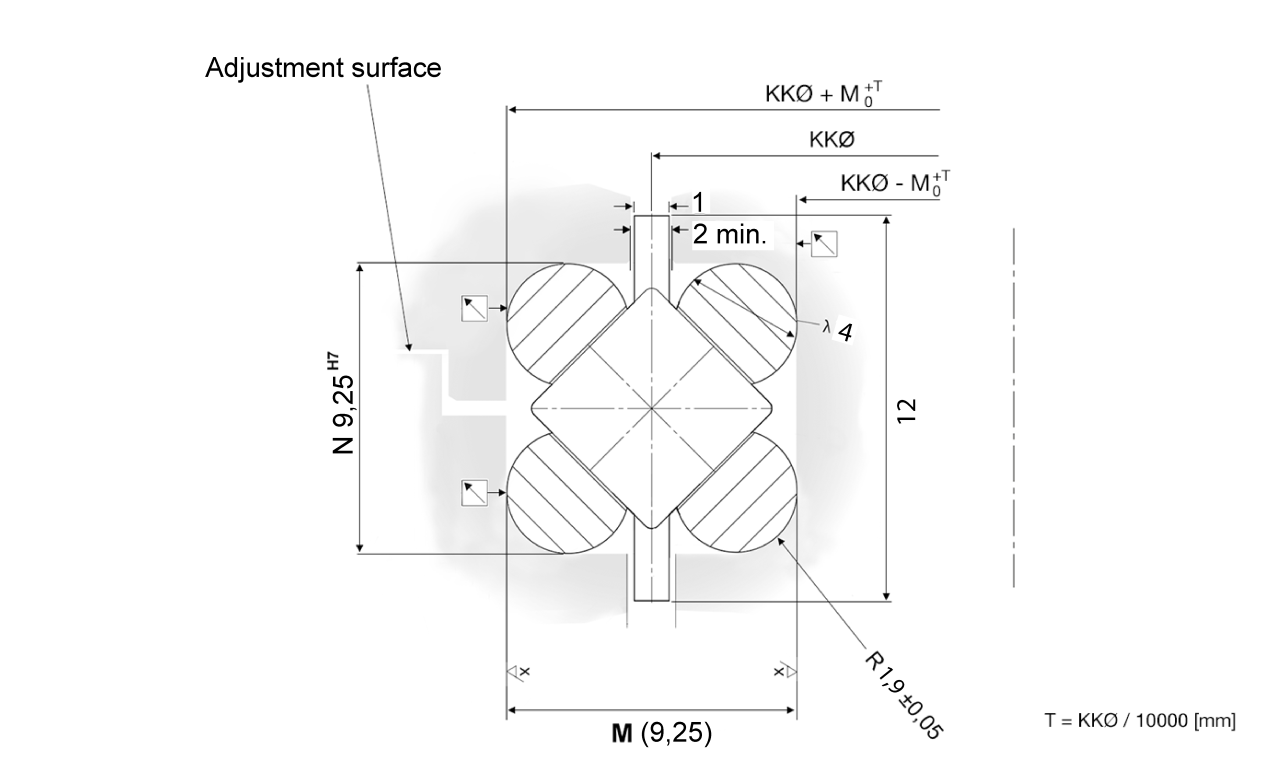

Dimensions and Data Tables

Special sizes on request

Unit price: -,- EUR
Price -,- EUR

Description

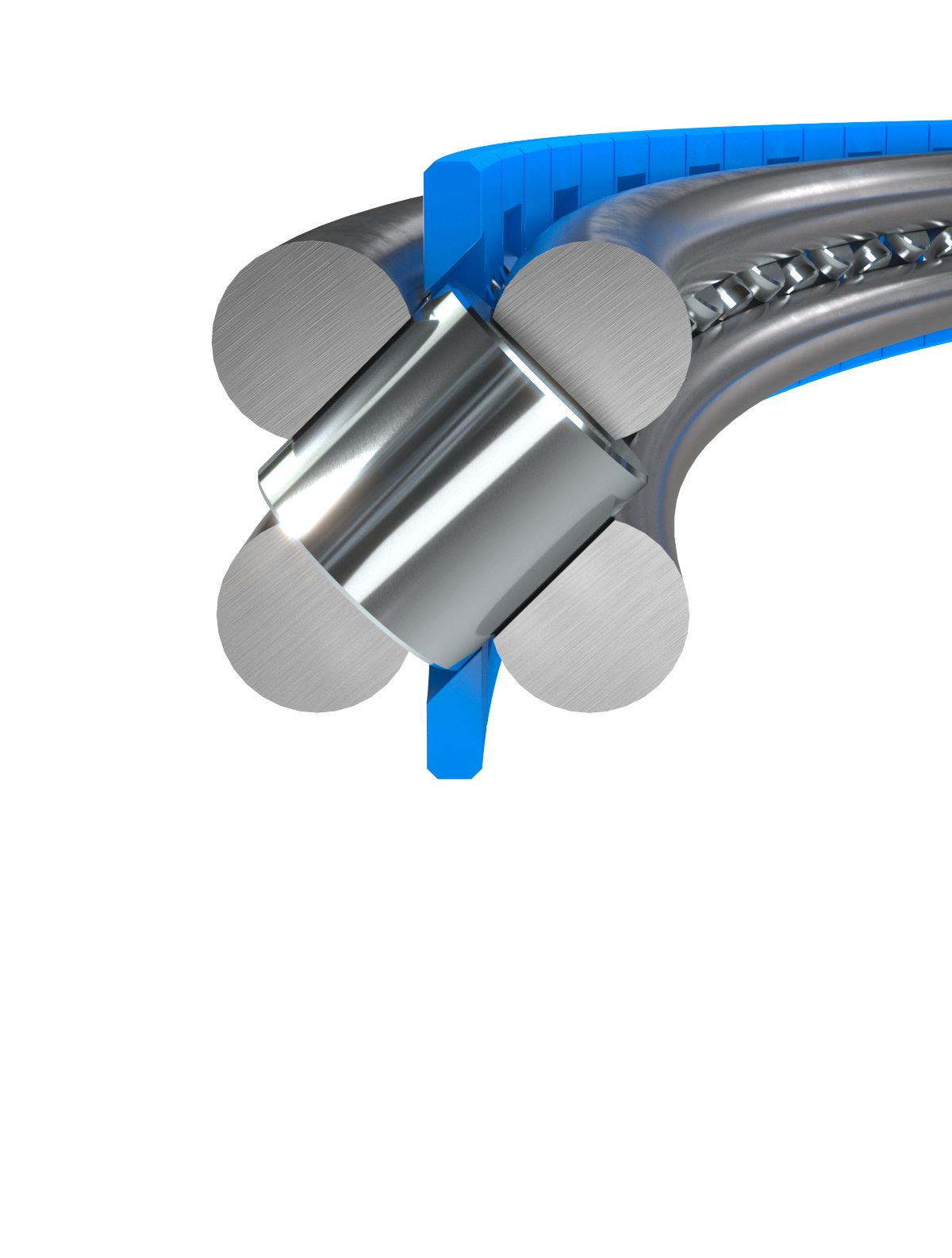

Franke wire race bearings type LEW are suitable for medium rotational speeds and accuracies. They convince by smooth running even under tilt moment loads, high rigidity and compact installation space. The crosswise arranged rollers can support high loads from all directions. Wire race bearings of model LEW are insensitive to shock and vibration. They offer the greatest possible flexibility in terms of preload, running characteristics and diameter ranges.

Material

Ball race rings: hardened and tempered chrome-silicon steel
Rolling element: hardened rolling bearing steel
Cage: polyamide

Operating temperature

-30 °C to +80 °C, short-term up to +100 °C

Peripheral speed

Max. 4 m/s

Lubricant

Shell Gadus S3 V220 C2
Smooth running

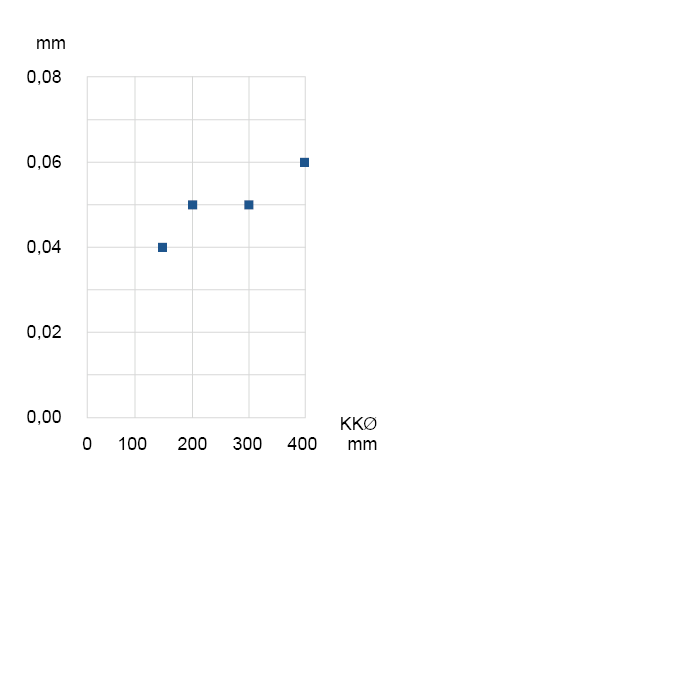

Accuracy
Speed
Stiffness
Assembly
Price

Design examples

Design example: single-row crossed roller bearing LEW 7, solid adjustment, S10 sealing
Design example: double-row wire race bearing LEW in angular contact arrangement, solid adjustment, S10 sealing on both sides
Design example: single-row crossed roller bearing LEW 7 with stepped housing, solid adjustment, S10 sealing
