Angular contact ball bearing type LVC

Name: LVC-0100
Brand: Franke
SKU: 97168A

97168A

Bearing diameter KK

Special sizes on request

Unit price:		-,- EUR
Price		-,- EUR

Quantity

Description

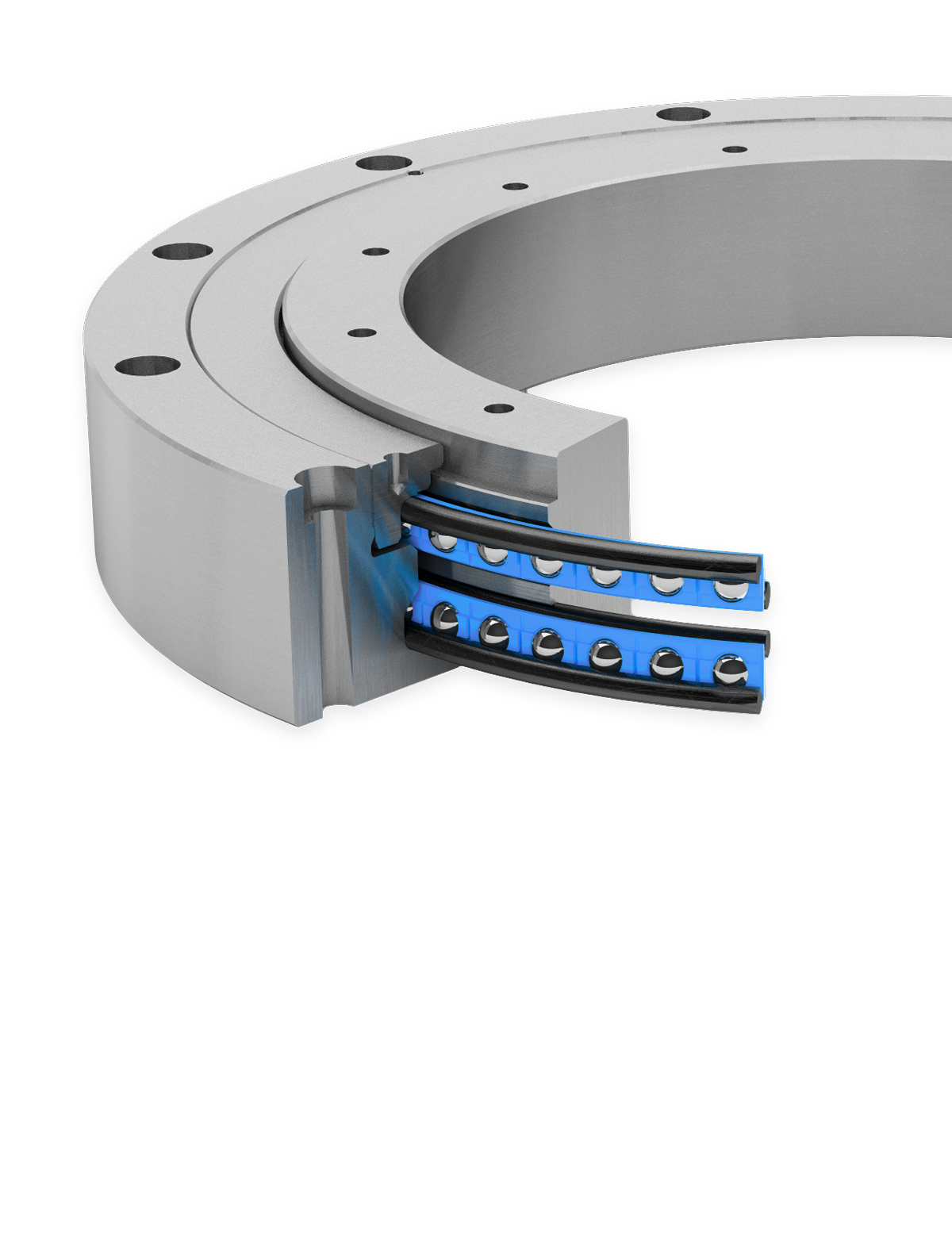

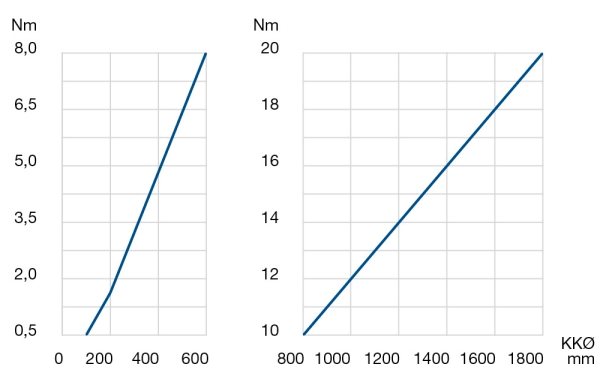

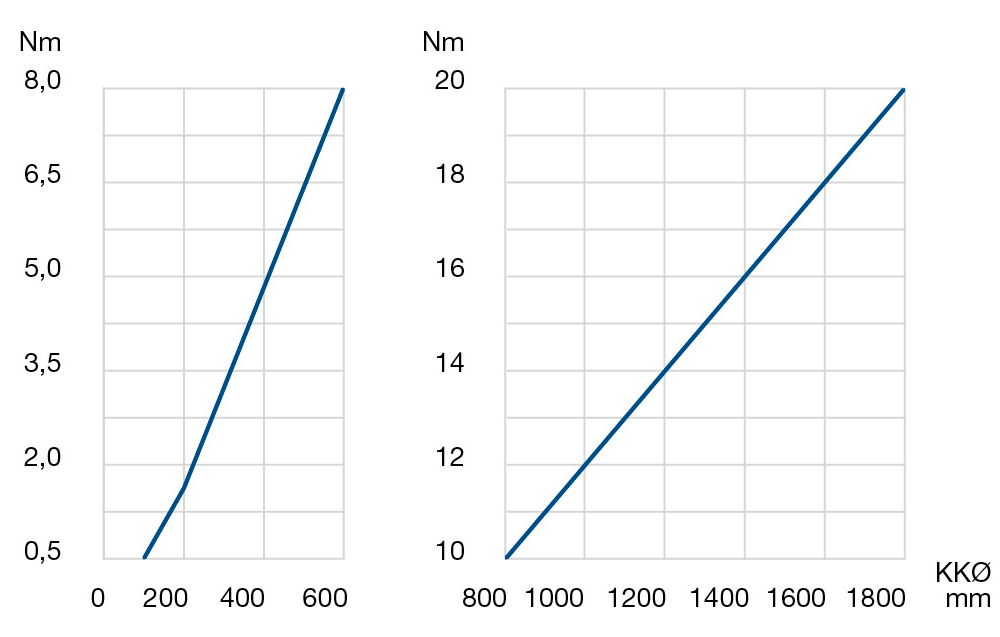

Franke LVC-type slewing rings are designed as double-row bearing-type rotary joints with integrated bearing elements. They are suitable for the highest circumferential speeds and loads, and offer outstanding dynamic performance and very low rotational resistance. LVC bearings are resistant to shocks and vibrations. The low rotational resistance and minimal breakaway torque reduce the required drive power. Due to their low coefficients of friction,LVC slewing rings operate virtually maintenance-free and achieve a long service life.

Material

Inner / Outer ring: C45N

Ball race rings: hardened and tempered chrome-silicon steel

Rolling element: hardened rolling bearing steel

Cage: polyamide or polyoxymethylene

Seal: NBR

Operating temperature: -20 °C to +80 °C, up to +100 °C for short periods

Peripheral speed: max. 20 m/s

Grease: Shell Gadus S3 V220 C2

Relubrication: via threaded grease nipple to DIN 3405

Operating temperature

-20 °C to +80 °C, short-term up to +100 °C

Peripheral speed

Max. 20 m/s

Lubricant

Shell Gadus S3 V220 C2

Relubrication

Via grease nipples to DIN 3405

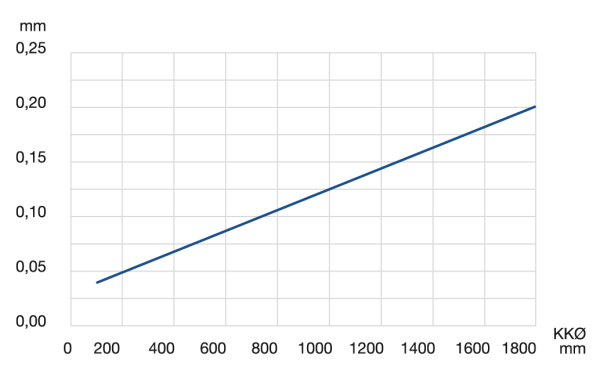

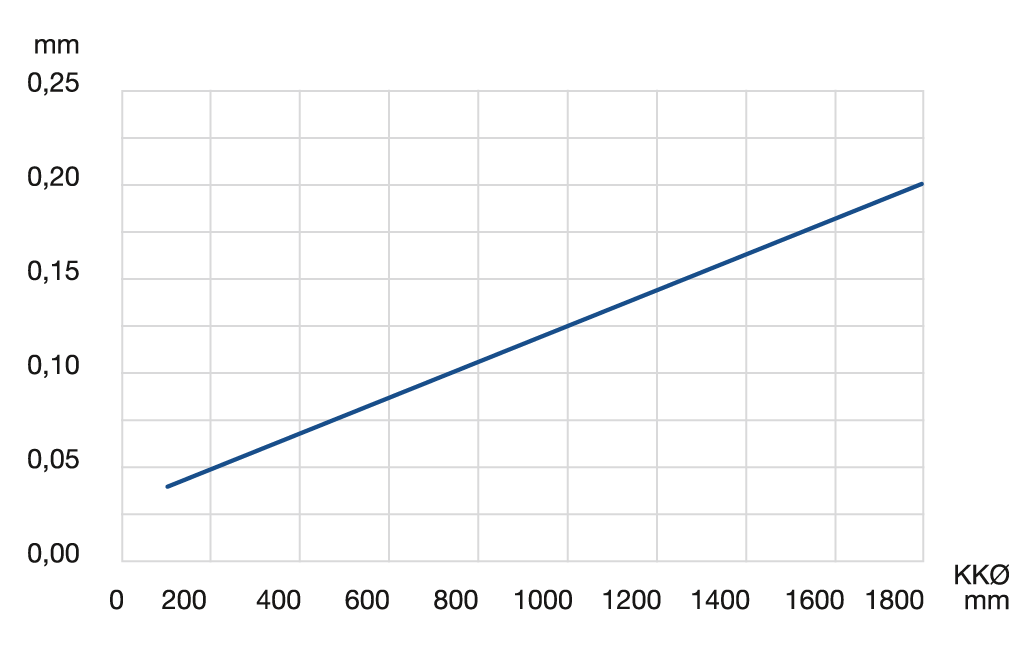

Smooth running
Resilience
Speed
Stiffness
Weight
Price

Data Table

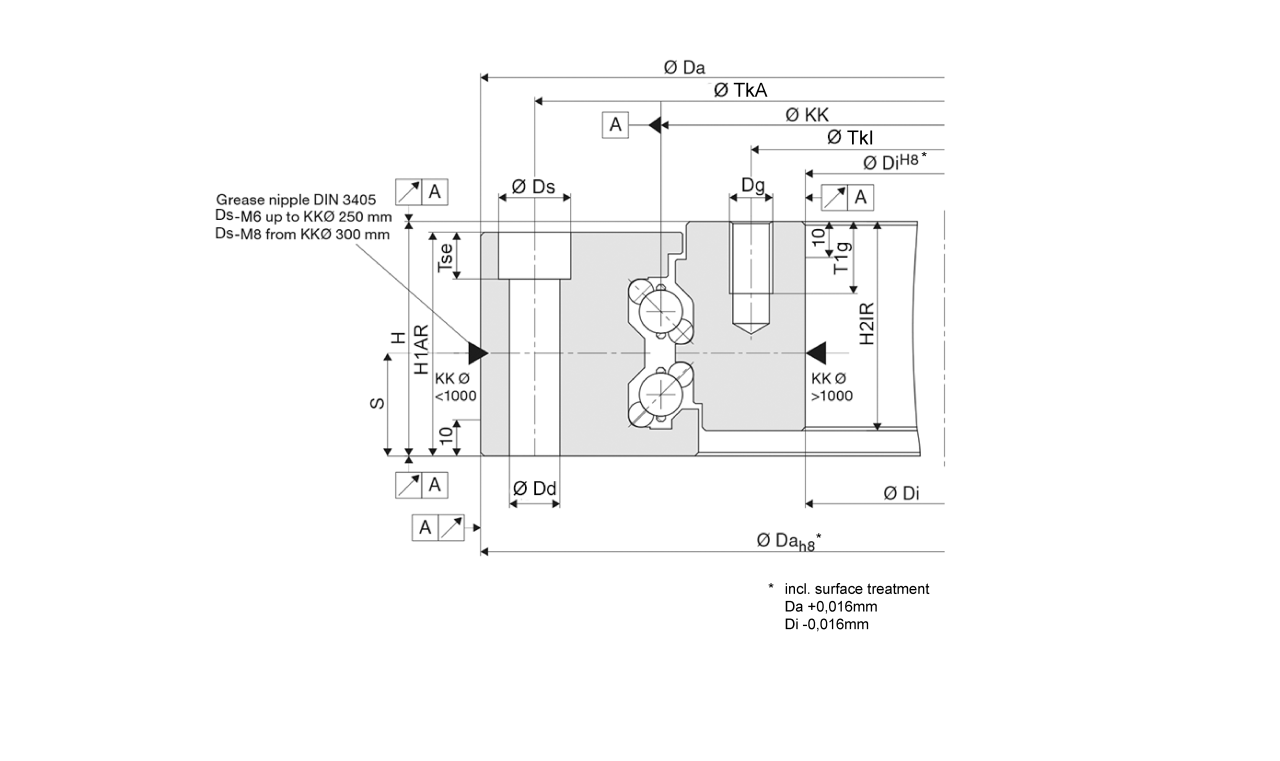

		Dimensions mm												Fastening per Ring
Name	KKØ mm	Ds	Dd	H	H1AR	H2IR	Dg	Tse	T1g	Da_h8	Di^H8	TkA	TkI
LVC-0100	100	11	6.6	34	33	33	M6	6.8	10	150	50	135	65	6
LVC-0150	150	11	6.6	34	33	33	M6	6.8	10	200	100	185	115	6
LVC-0200	200	11	6.6	34	33	33	M6	6.8	10	250	150	235	165	8
LVC-0250	250	11	6.6	34	33	33	M6	6.8	10	300	200	285	215	10
LVC-0300	300	18	11	57	54	50	M10	11	15	380	230	355	255	12
LVC-0350	350	18	11	57	54	50	M10	11	15	430	280	405	305	14
LVC-0400	400	18	11	57	54	50	M10	11	15	480	330	455	355	14
LVC-0450	450	18	11	57	54	50	M10	11	15	530	380	505	405	14
LVC-0500	500	20	14	65	62	58	M12	13	20	600	420	570	450	14
LVC-0600	600	20	14	65	62	58	M12	13	20	700	520	670	550	16
LVC-0700	700	20	14	65	62	58	M12	13	20	800	620	770	650	22
LVC-0800	800	20	14	65	62	58	M12	13	20	900	720	870	750	24
LVC-0900	900	20	14	65	62	58	M12	13	20	1000	820	970	850	24
LVC-1000	1000	20	14	65	62	58	M12	13	20	1100	920	1070	950	26
LVC-1200	1200	26	18	69	67	61	M16	17.5	25	1300	1085	1265	1130	30
LVC-1400	1400	26	18	69	67	61	M16	17.5	25	1500	1285	1465	1330	36
LVC-1600	1600	26	18	84	82	76	M16	17.5	25	1730	1470	1685	1515	42
LVC-1800	1800	26	18	84	82	76	M16	17.5	25	1930	1670	1885	1715	46

		Load Ratings kN				Static Moment kNm
Name	KKØ mm	C_0a	C_0r	C_a	C_r	C_0m	Weight kg
LVC-0100	100	53	25	11	10	1,2	3,70
LVC-0150	150	80	38	13	11	2,8	5,60
LVC-0200	200	155	73	21	18	7,3	7,40
LVC-0250	250	195	92	22	19	11,5	9,20
LVC-0300	300	254	120	28	24	17,9	27,70
LVC-0350	350	296	140	30	26	24,4	32,20
LVC-0400	400	338	159	31	27	31,9	36,70
LVC-0450	450	381	179	33	28	40,3	41,20
LVC-0500	500	636	299	53	46	74,8	63,70
LVC-0600	600	763	359	56	49	107,7	76,20
LVC-0700	700	890	419	60	52	146,6	88,60
LVC-0800	800	1017	479	63	54	191,5	101,10
LVC-0900	900	1144	538	65	57	242,3	113,60
LVC-1000	1000	1277	601	68	59	300,5	126,00
LVC-1200	1200	1531	720	73	63	432,4	192,60
LVC-1400	1400	1791	843	77	67	590,1	224,70
LVC-1600	1600	2045	962	81	70	770,1	389,00
LVC-1800	1800	2305	1085	85	73	976,4	437,40
