Ball bearing type LVB

Name: LVB-0100
Brand: Franke
SKU: 69715L

69715L

Bearing diameter KK

Special sizes on request

Unit price:		-,- EUR
Price		-,- EUR

Quantity

Description

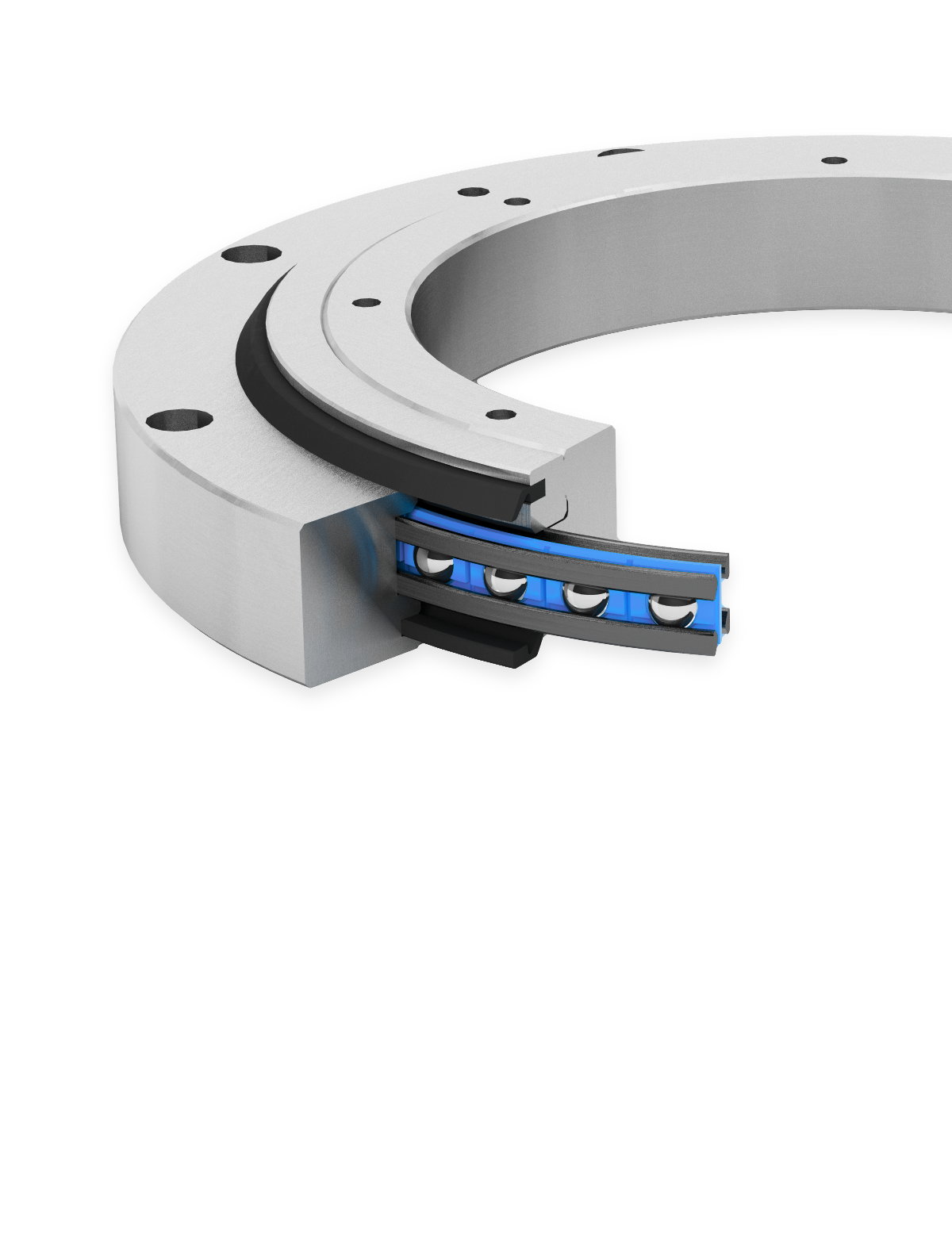

Franke LVB slewing rings are ready-to-install universal joints with housing rings made of aluminium and integrated wire race bearings. Designed as 4-point bearings, they can withstand equal loads from all directions and are resistant to shocks and vibrations. LVB slewing rings are sealed on both sides. All Franke slewing rings are adjusted to be play-free with preload.

Material

Inner / Outer ring: aluminium, anodized

Ball race rings: hardened and tempered chrome-silicon steel

Rolling element: hardened rolling bearing steel

Cage: polyamide Seal: NBR / alternatively FKM (Viton)

Operating temperature: -20 °C to +80 °C, up to +100 °C for short periods

Peripheral speed: max. 5 m/s, 10 m/s without seal

Grease: Shell Gadus S3 V220 C2

Relubrication: via threaded grease nipple to DIN 3405

Operating temperature

-20 °C to +80 °C, short-term up to +100 °C

Peripheral speed

Max. 5 m/s, without seal max. 10 m/s

Lubricant

Shell Gadus S3 V220 C2

Relubrication

Via grease nipples to DIN 3405

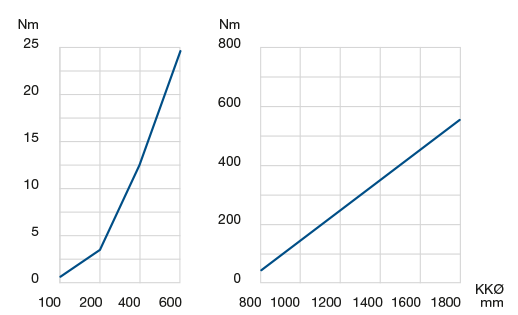

Smooth running
Resilience
Speed
Stiffness
Weight
Price

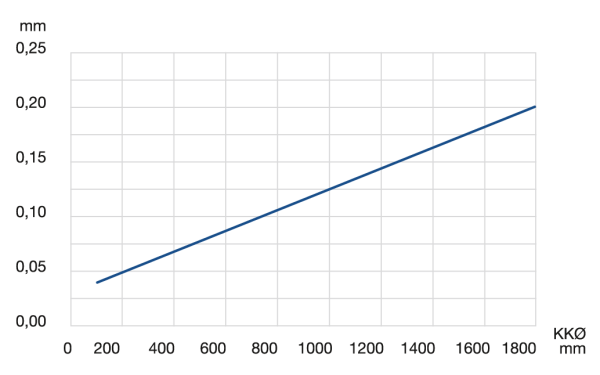

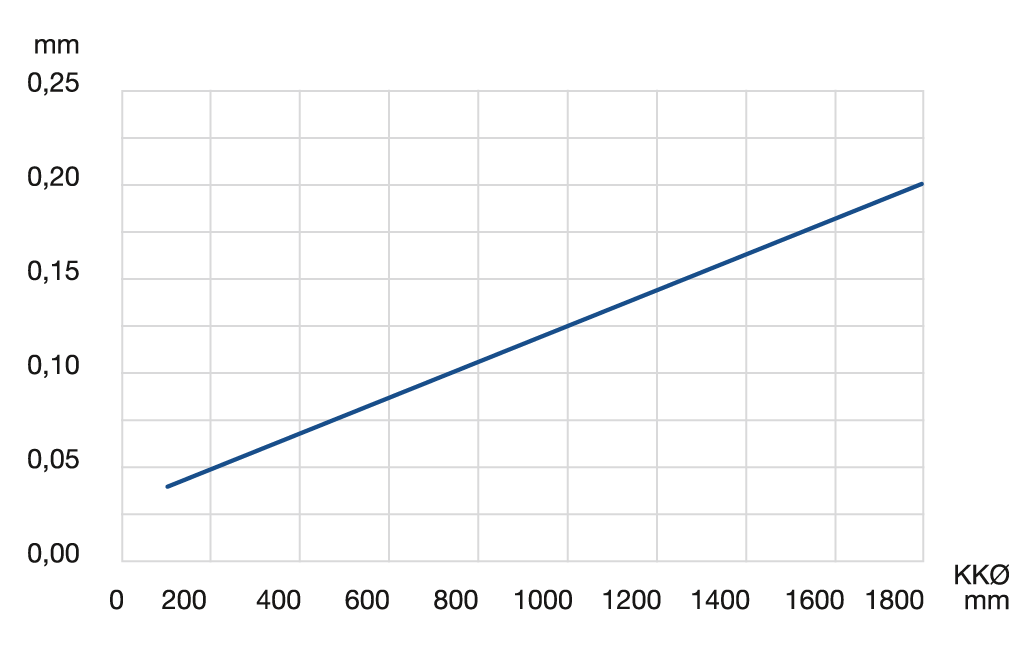

Data Table

		Dimensions mm											Fastening per Ring

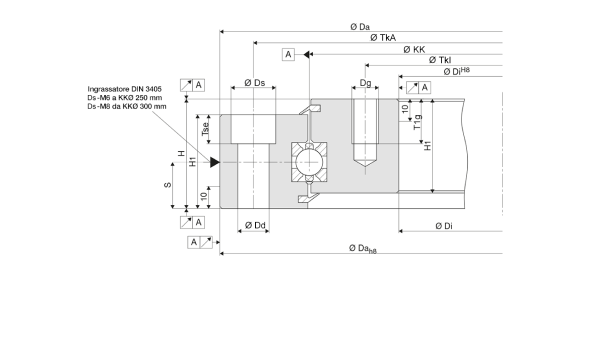

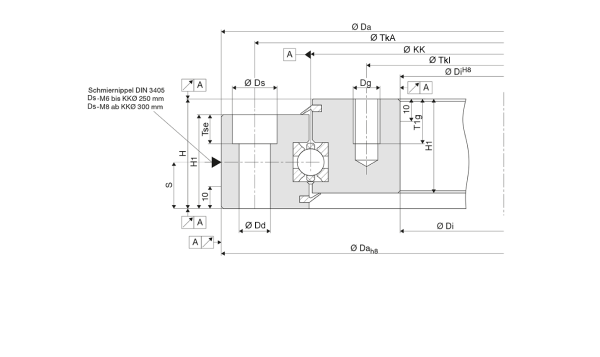

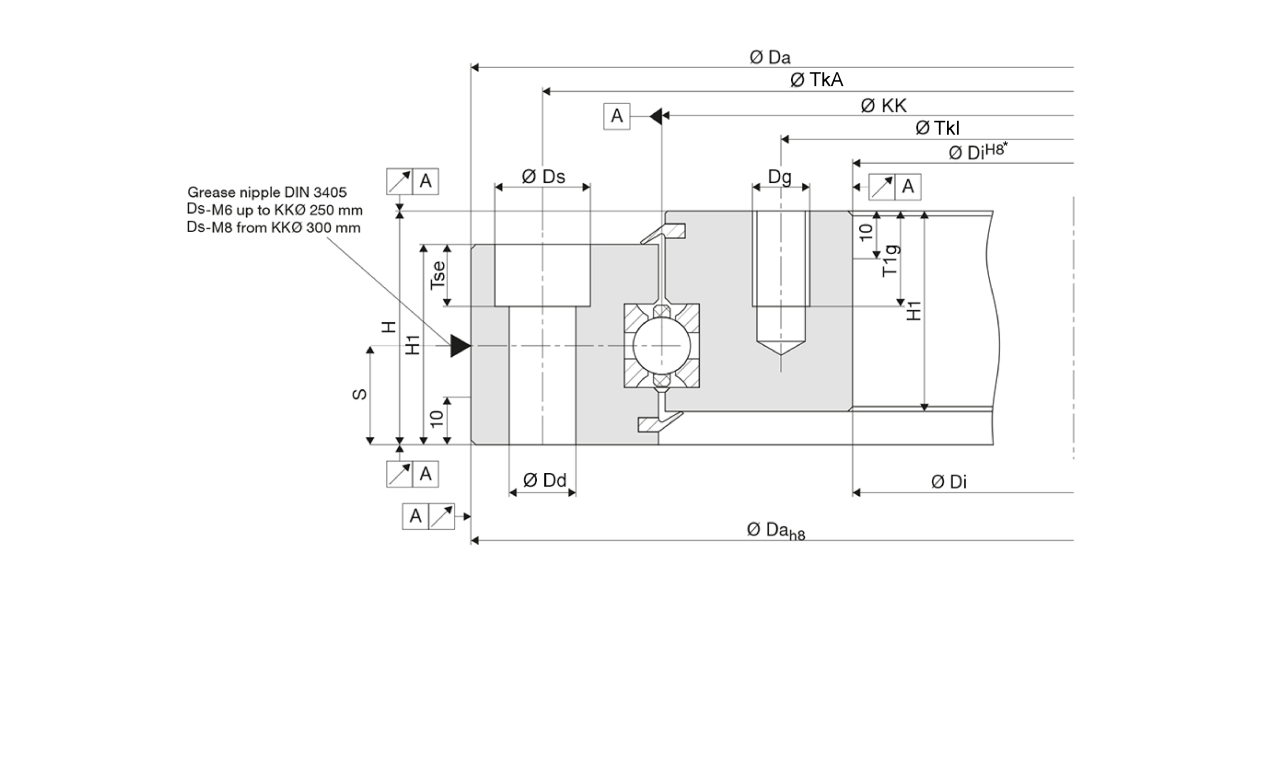

Name	KKØ mm	Ds	Dd	H	H1	Dg	Tse	T1g	Da_h8	Di^H8	TkA	TkI
LVB-0100	100	11	6.6	34	27	M6	6.8	10	150	50	135	65	6
LVB-0150	150	11	6.6	34	27	M6	6.8	10	200	100	185	115	6
LVB-0200	200	11	6.6	34	27	M6	6.8	10	250	150	235	165	8
LVB-0250	250	11	6.6	34	27	M6	6.8	10	300	200	285	215	10
LVB-0300	300	15	9	38	31	M8	9	15	360	240	340	260	12
LVB-0350	350	15	9	38	31	M8	9	15	410	290	390	310	14
LVB-0400	400	18	11	44	37	M10	11	15	470	330	445	355	14
LVB-0450	450	18	11	44	37	M10	11	15	520	380	495	405	14
LVB-0500	500	20	14	49	42	M12	13	20	580	420	550	450	14
LVB-0600	600	20	14	49	42	M12	13	20	680	520	650	550	16
LVB-0700	700	20	14	53	45	M12	13	20	790	610	750	650	22
LVB-0800	800	20	14	53	45	M12	13	20	890	710	850	750	24
LVB-0900	900	20	14	53	45	M12	13	20	990	810	950	850	24
LVB-1000	1000	20	14	53	45	M12	13	20	1090	910	1050	950	26
LVB-1200	1200	26	18	60	52	M16	17.5	25	1300	1100	1265	1135	30
LVB-1400	1400	26	18	60	52	M16	17.5	25	1500	1300	1465	1335	36
LVB-1600	1600	26	18	90	82	M16	17.5	25	1730	1470	1685	1515	42
LVB-1800	1800	26	18	90	-	M16	17.5	25	1930	1670	1885	1715	46
