Worm drive
Rotary table type LTA
91800A
| Unit price: |  |
-,- EUR |
| Price | |
-,- EUR |
Material
Base plate: Aluminium
Housing: V2A
Ball race rings: hardened and tempered chrome-silicon steel
Rolling element: hardened rolling bearing steel
Worm wheel: Wear-resistant bronze alloy
Worm shaft: CK45N hardened and grinded
Housing: V2A
Ball race rings: hardened and tempered chrome-silicon steel
Rolling element: hardened rolling bearing steel
Worm wheel: Wear-resistant bronze alloy
Worm shaft: CK45N hardened and grinded
Operating temperature
-10 °C to +80 °C
Mounting position
Any, preferably horizontal
Lubricant
With bearing grease via grease nipples
Options
Inductive proximity switch, flange/coupling to mount the motor, motorization
| Accuracy | |
| Speed | |
| Ø-Range | |
| Price |

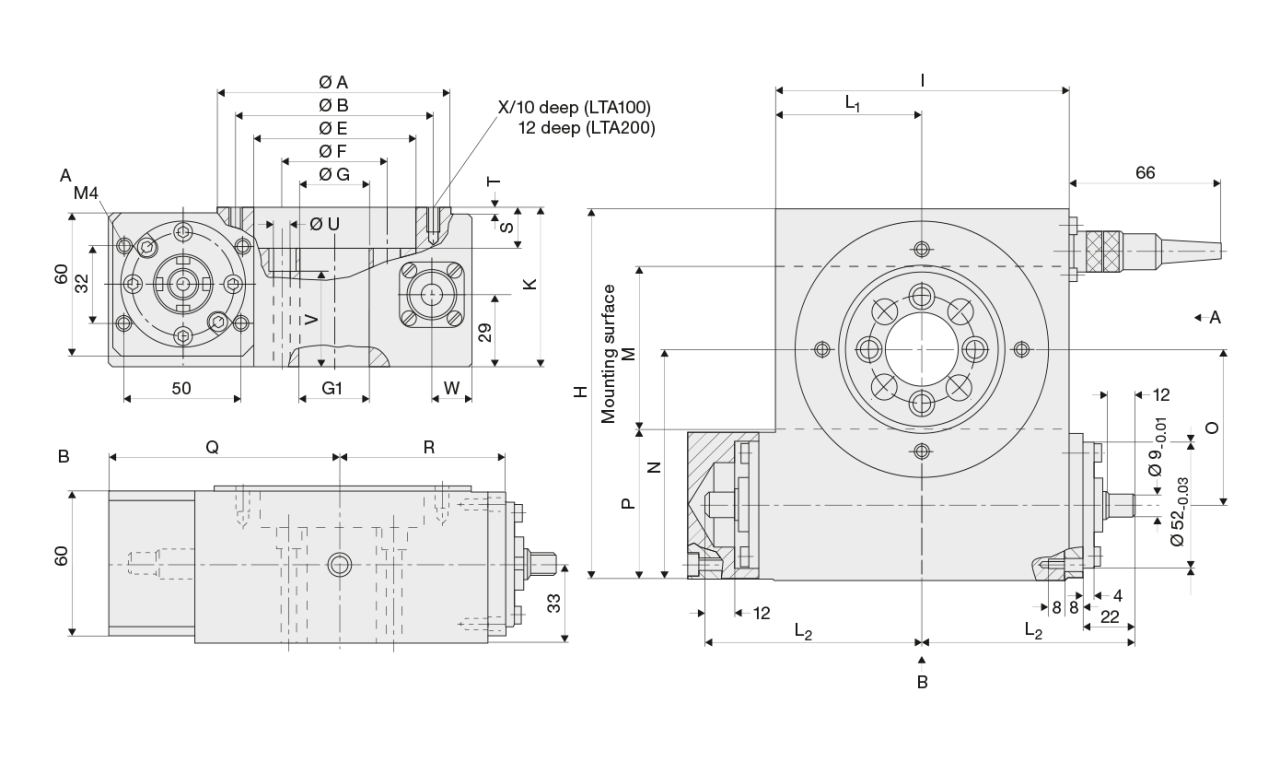

Data Table
| Table 1 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Name | Nominal Diameter Ø mm | Dimensions mm | |||||||||
| A | B | ØEH7/6 tief | ØF | ØG | ØG1H712 tief | H | I | K | L1 | L2 | |
| LTA100 | - | ? | ? | ? | ? | ? | - | - | - | - | ? |
| LTA200 | - | ? | ? | ? | ? | ? | - | - | - | - | ? |
| Table 2 | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Name | Nominal Diameter Ø mm | Load Ratings kN | Dimensions mm | |||||||||||
| A | C0 | C | M | N | P | Q | R | S | T | U | V | W | X | |
| LTA100 | - | - | - | - | - | ? | ? | ? | ? | ? | ? | ? | ? | ? |
| LTA200 | - | - | - | - | - | ? | ? | ? | ? | ? | ? | ? | ? | ? |
| Table 3 | ||||||
|---|---|---|---|---|---|---|
| Name | Nominal Diameter Ø mm |
Tilting Moment Nm |
Input Speed U/min |
Reduction Ratio | Output Speed U/min |
Weight kg |
| A | C0m | N1 max | N2 max | |||
| LTA100 | - | 289 | ? | ? | ? | 5.5 |
| LTA200 | - | 433 | ? | ? | ? | 10 |
