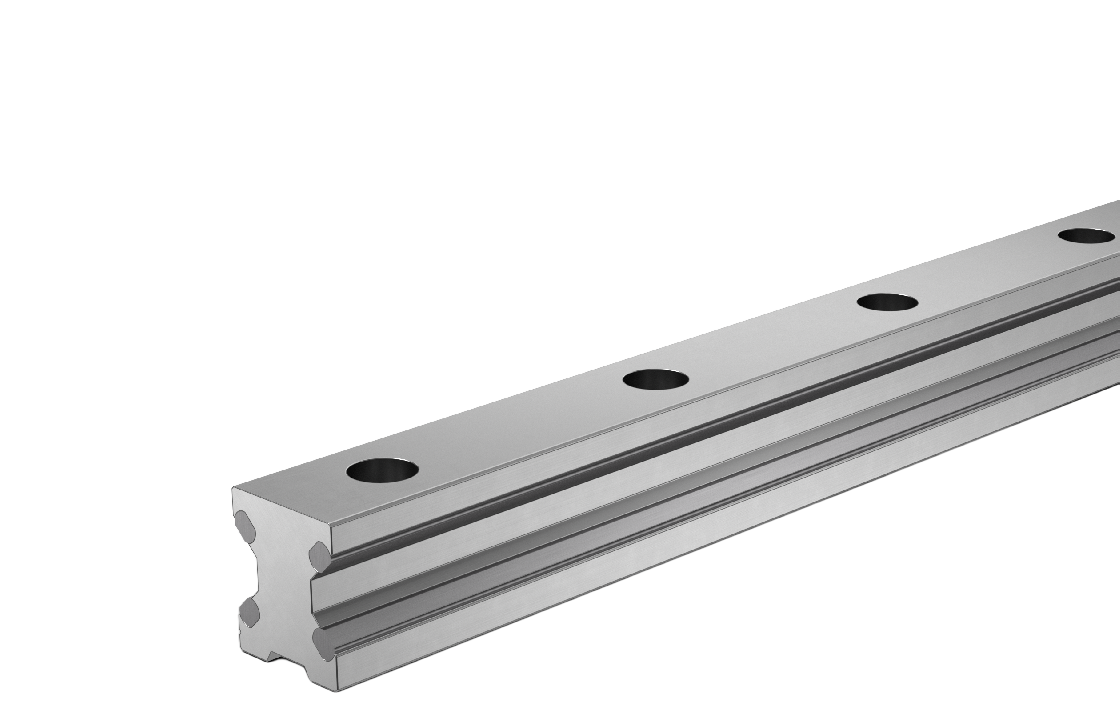

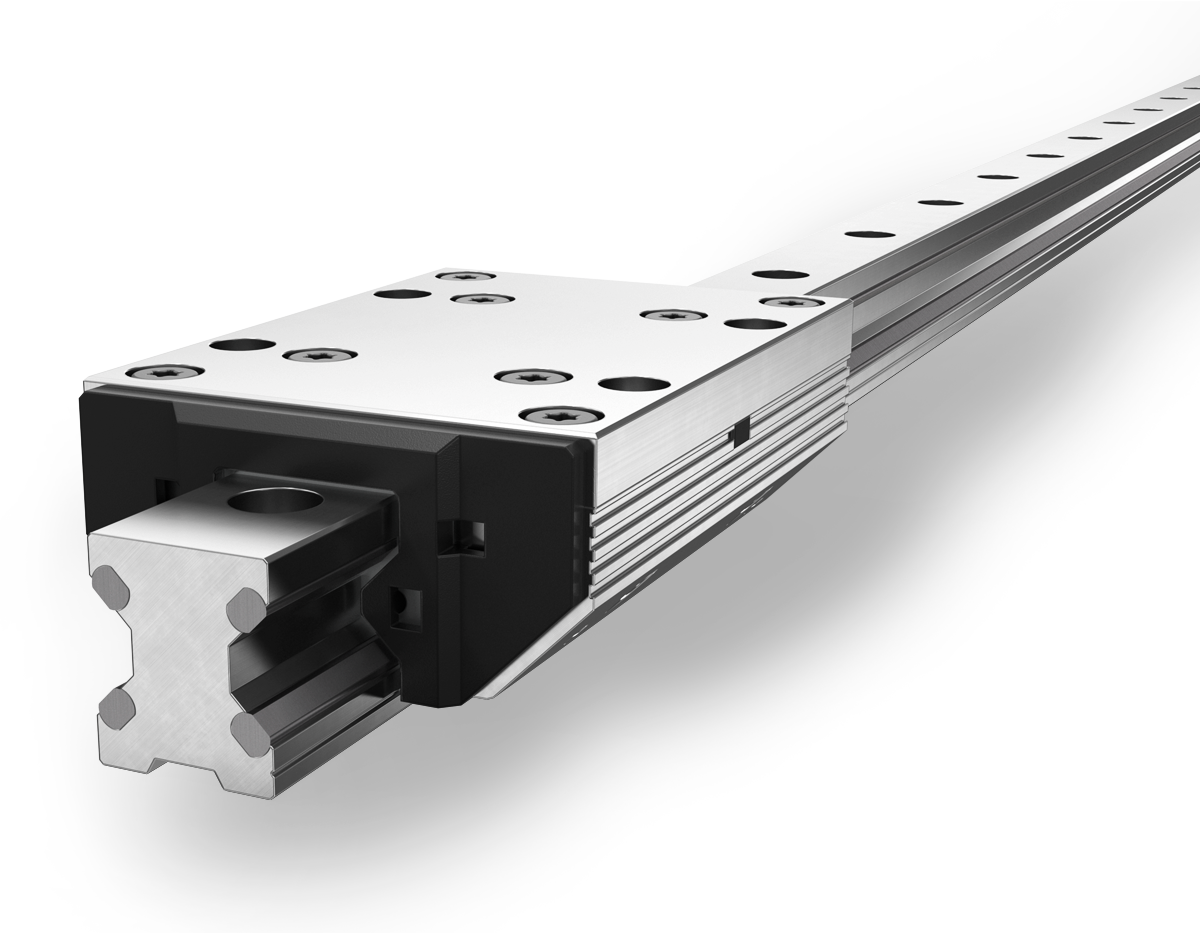

Profile rail with carriage
Standard type FDA
FDA12F0200
| Unit price: |  |
-,- EUR |
| Price Profile rail | |
-,- EUR/m |
| Price Carriage | |
-,- EUR/m |
| Total price: | |
-,- EUR |
Description
Stroke length
Material
Rail body: aluminum, anodized
Raceways: spring steel
Rollers: bearing steel
Operating temperature
Maximum speed
Mounting position
Lubricant
| Roller: | Needle bearings |
| Raceway: | Spring steel |
| Resilience | |
| Dynamics | |
| Corrosion resistant | |
| Non magnetic | |
| Lubricant free | |
| Price |

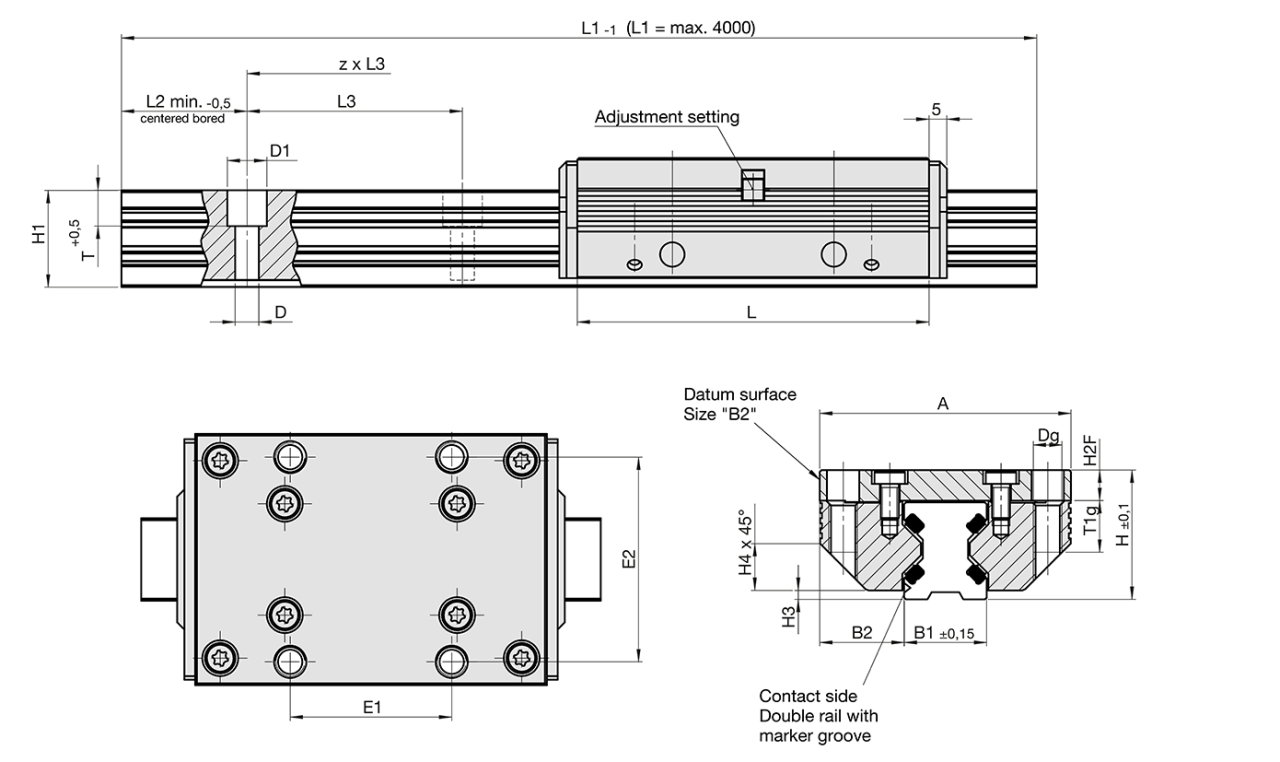

Data Table
| Size | Dimensions mm | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| A | L | H | B1 | B2 | D | D1 | Dg | E1 | |
| 12 | 37 | 64 | 19 | 12 | 12.5 | 3.4 | 6 | M4 | 25 |
| 15 | 47 | 78 | 24 | 15.5 | 15.8 | 4.5 | 8 | M5 | 30 |
| 20 | 63 | 92 | 30 | 21 | 21 | 5.5 | 10 | M6 | 40 |
| 25 | 70 | 98 | 36 | 23 | 23.5 | 6.6 | 11 | M8 | 45 |
| 35 | 100 | 135 | 48 | 32 | 34 | 9 | 15 | M10 | 62 |
| 45 | 120 | 165 | 60 | 45 | 37.5 | 11 | 18 | M12 | 80 |
| Size | Dimensions mm | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| E2 | H1 | H2F | H3 | H4 | L2 | L3 | T | T1g | |
| 12 | 30 | 14,7 | 4 | 1.4 | 5.5 | 10 | 40 | 5,5 | 8 |
| 15 | 38 | 18,7 | 5 | 2 | 8 | 10 | 60 | 6,0 | 10 |
| 20 | 53 | 22,6 | 7 | 2 | 11 | 10 | 60 | 8,0 | 12 |
| 25 | 57 | 27,0 | 8.5 | 2.5 | 13 | 10 | 60 | 10,0 | 16 |
| 35 | 82 | 37,0 | 10.5 | 3.5 | 20 | 12 | 80 | 11,5 | 20 |
| 45 | 100 | 46,0 | 13.5 | 4 | 22 | 16 | 105 | 14,5 | 24 |
| Size | Load Ratings N | Moment capacities carriage Nm | Weight kg | |||||
|---|---|---|---|---|---|---|---|---|
| C | C0 | M0cx | Mcx | M0cy/M0cz | Mcy/Mcz | Weight | Rail/m | |
| 12 | 2800 | 3000 | 27,0 | 25,0 | 40 | 43 | 0,09 | 0,40 |
| 15 | 4200 | 3400 | 37,0 | 45,0 | 72 | 58 | 0,17 | 0,80 |
| 20 | 5400 | 5400 | 76,0 | 76,0 | 111 | 111 | 0,35 | 1,30 |
| 25 | 9000 | 10100 | 158,0 | 142,0 | 198 | 222 | 0,50 | 1,60 |
| 35 | 12500 | 18000 | 423,0 | 294,0 | 388 | 559 | 1,40 | 2,60 |
| 45 | 21200 | 25900 | 827,0 | 687,0 | 806 | 983 | 2,50 | 4,50 |
