Application example Swivel station placement machine
Requirements
Application example placement machine

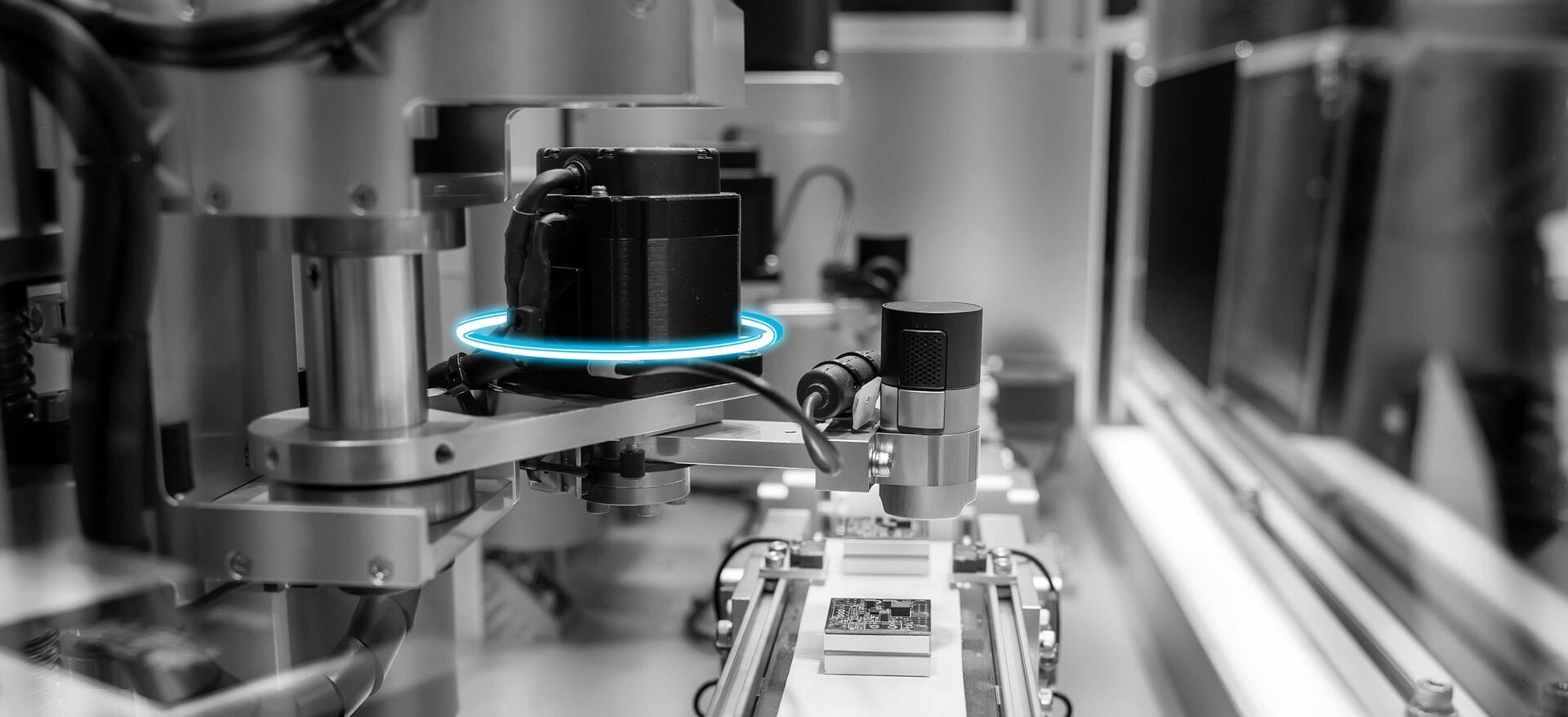

Circuit boards are assembled in this swivel station. The requirements consist of a quick 180° rotation, with a maximum swing time of 0.4 seconds and a cycle of 1.0 seconds. The high acceleration results in high torque. At the same time, maximum precision is required in terms of positioning and repeatability.
Bearing solution used
Advantages
Bearing assemblies with direct drive are suitable for applications where high performance and low space requirements are important criteria. The integration of the drive into the bearing housing means that wear-prone assemblies for transmitting drive power, such as toothed belts, shafts or chains, can be dispensed with. This reduces the required drive energy and also benefits more accurate positioning.
Whitepaper slewing ring with torque drive
Find out more about slewing rings with integrated torque motor and why it is superior to other drive types in almost every respect.
In future, dispense with components such as gearboxes and drive pinions.
More about the products
