Application example Baggage scanner

Requirements

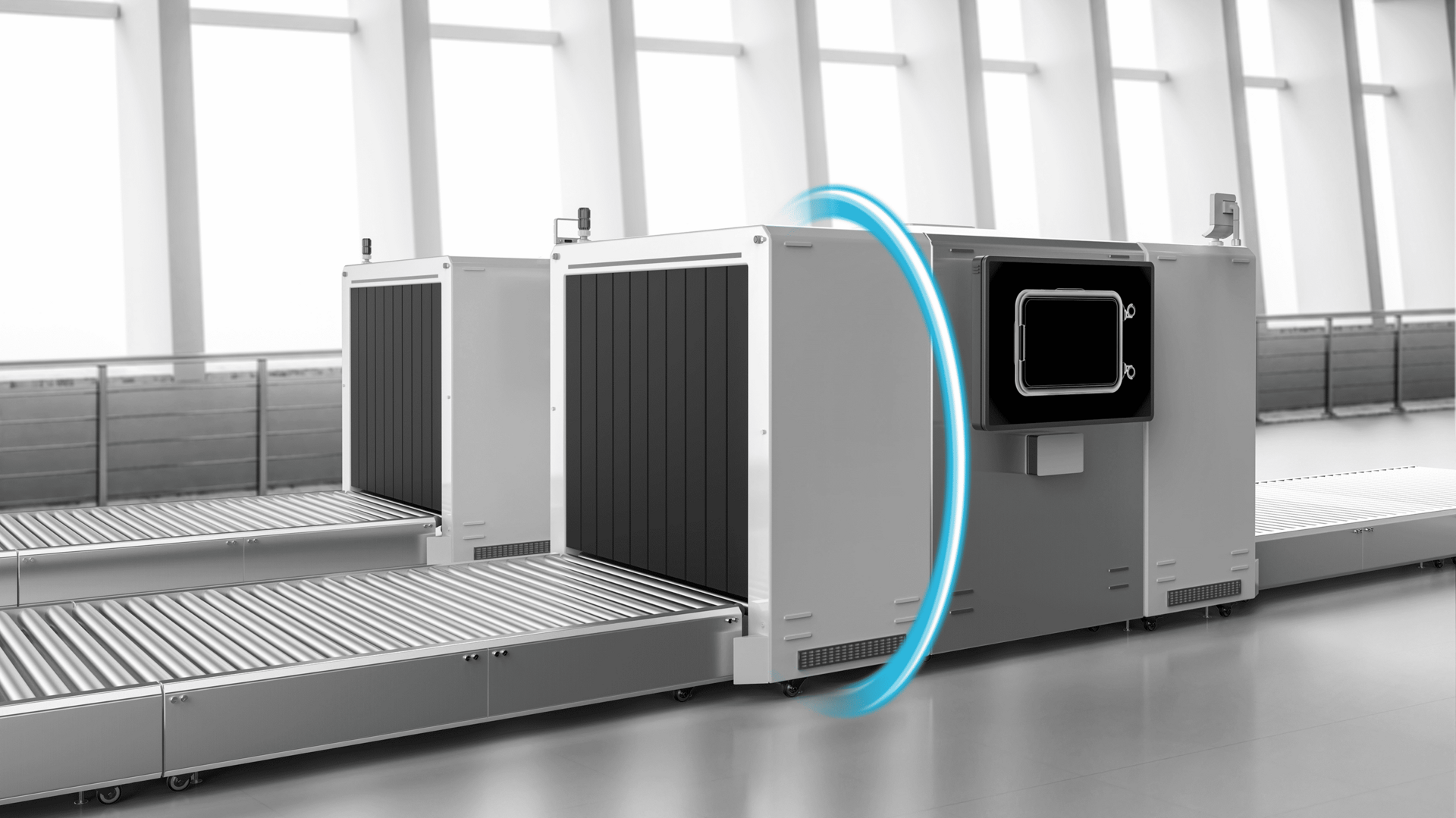

Application: main bearing in a luggage scanner
The main bearing of a baggage scanner should on the one hand have mounts for other components such as slip rings, X-ray detectors and drive components and on the other hand rotate smoothly and evenly at up to 150 rpm. Low noise development, large freedom of movement and a maintenance-free and long service life with over 50 million revolutions are also expected.
Solution
Bearing assembly LDC-1068 as a 4-point bearing made of aluminum with customer-specific design of the housing rings.
Bearing solution used
Advantages
Great center clearance and a compact bearing cross section. A weight saving is achieved through the lightweight aluminum construction.
