Roller bearing type LVW

617911

Bearing diameter KK

Special sizes on request

Unit price:		-,- EUR
Price		-,- EUR

Quantity

Description

Franke slewing rings of type LVW are suitable for medium rotational speeds and accuracies. They stand out with smooth running even under high moment loads, high rigidity, and low weight thanks to the aluminium construction.

The crossed roller arrangement absorbs high loads from all directions. Slewing rings of type LVW are insensitive to shocks and vibrations. Unlike a bearing element, the LVW comes as a fully pre-assembled unit: inner and outer ring made of anodised aluminium with ready-made mounting holes. This allows it to be bolted directly between two components, without the need for a separate adjacent construction.

Material

Inner/outer ring: aluminium, anodised
Ball raceways: hardened and tempered chromium-silicon steel
Rolling elements: hardened bearing steel
Cage: polyamide or thermoplastic polyurethane
Seal: NBR

Operating temperature

–30 °C to +80 °C, up to +100 °C for short periods

Peripheral speed

Max. 2 m/s

Lubricant

Shell Gadus S3 V220 C2

Relubrication

Via grease nipple in accordance with DIN 3405

Smooth running
Accuracy
Speed
Stiffness
Assembly
Price

Data Table

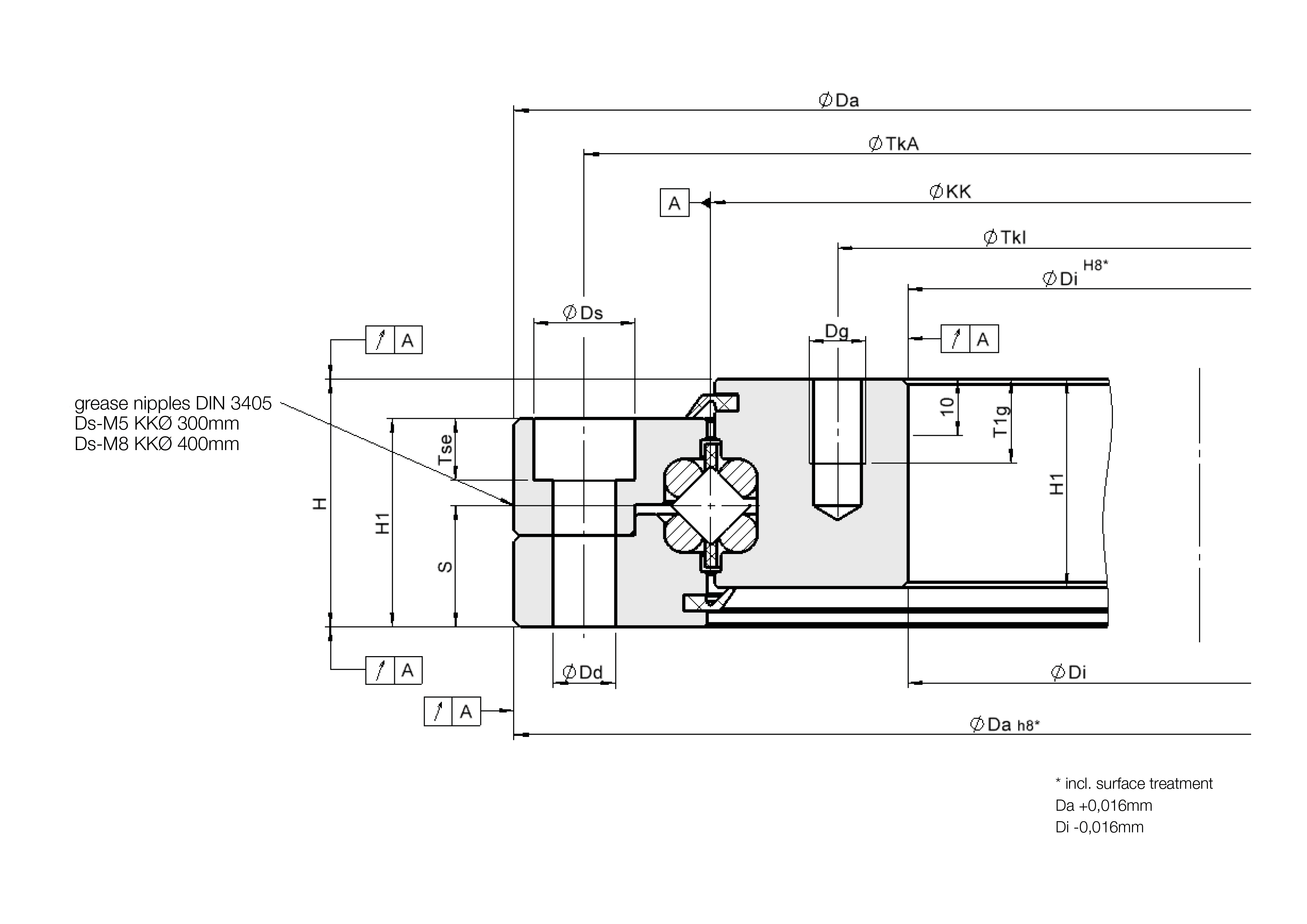

		Dimensions mm											Fastening per Ring
Name	KKØ mm	Ds	Dd	H	H1	Dg	Tse	T1g	Da_h8	Di^H8	TkA	TkI
LVW-0200	200	11	6.6	34	27	M6	6.8	10	250	150	235	165	8
LVW-0300	300	15	9	38	31	M8	9	15	360	240	340	260	12
LVW-0400	400	18	11	44	37	M10	11	15	470	330	445	355	14
LVW-0500	500	20	14	49	42	M12	13	20	580	420	550	450	14

		Load Ratings kN				Static Moment kNm
Name	KKØ mm	C_0a	C_0r	C_a	C_r	C_0m	Weight kg
LVW-0200	200	109	44	41	21	4,4	2,38
LVW-0300	300	164	66	47	25	9,8	4,80
LVW-0400	400	354	141	91	48	28,3	9,40
LVW-0500	500	444	177	99	52	44,4	14,90
