Slewing ring made of aluminium

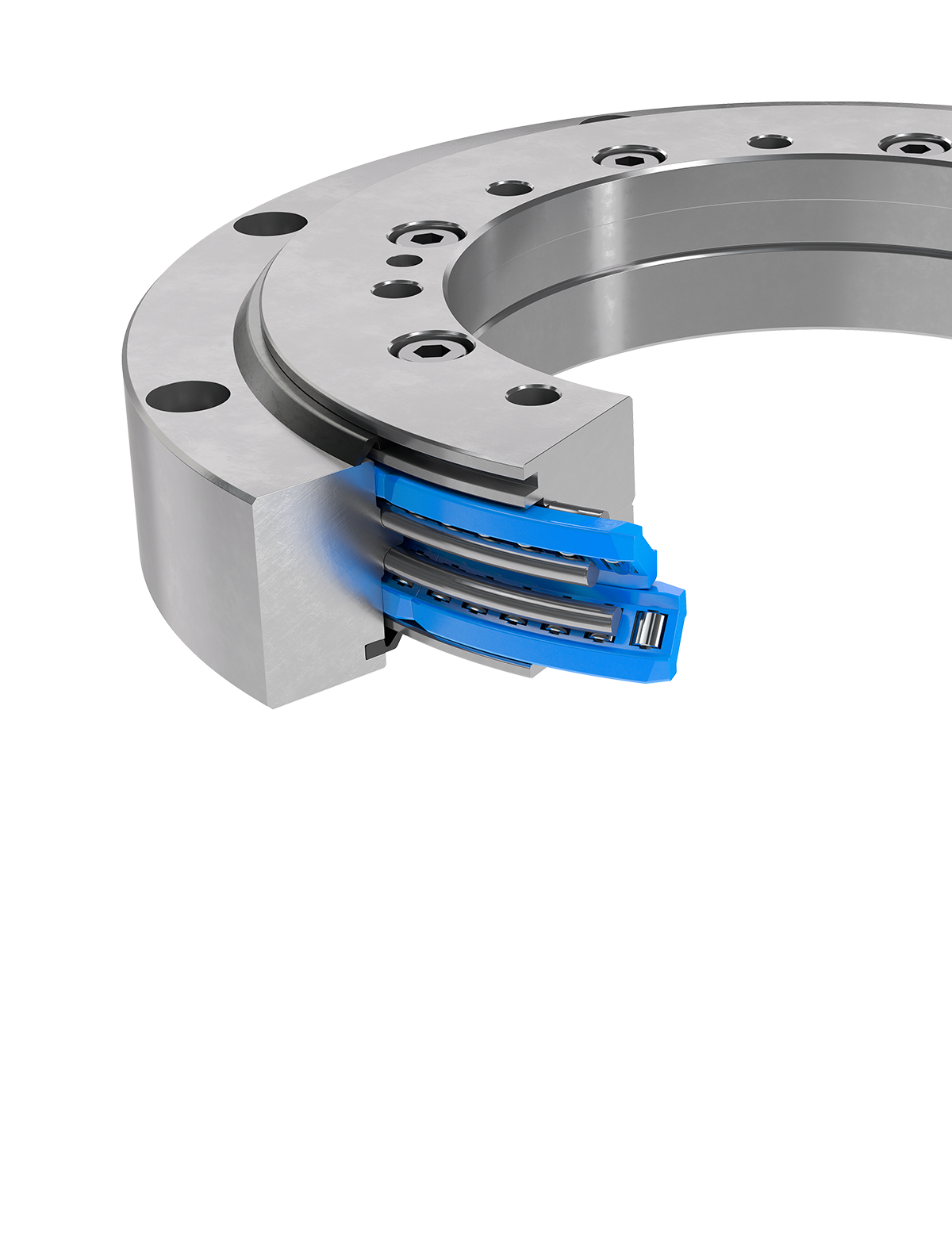

Angular contact roller bearing type LVG
| Unit price: |  |
-,- EUR |
| Price | |
-,- EUR |
Material Inner / Outer ring: aluminium, anodized Ball race rings: hardened and tempered chrome-silicon steel Rolling element: hardened rolling bearing steel Cage: polyamide or thermoplastic polyurethane Sealing: NBR
Operating temperature -20 °C to +80 °C, short-term up to +100 °C
Peripheral speed Max. 4 m/s
Lubricant Isoflex Topas NCA52
Relubrication Via grease nipples to DIN 3405
| Smooth running | |
| Resilience | |
| Speed | |
| Stiffness | |
| Weight | |
| Price |
Data Table
| Dimensions mm | Fastening per Ring | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Name | KKØ mm | Ds | Dd | H | H1 | Dg | Tse | T1g | Da | DI | TkA | TkI | ||
| LVG-200 | 200 | 15 | 9 | 47 | 40 | M8 | 9 | 35 | 262 | 140 | 243 | 159 | ||
| LVG-300 | 300 | 18 | 11 | 57 | 50 | M10 | 11 | 43 | 375 | 223 | 350 | 248 | ||
| LVG-400 | 400 | 18 | 11 | 57 | 50 | M10 | 11 | 43 | 475 | 323 | 450 | 348 | ||
| Load Ratings kn | Static Moment kNm | ||||||
|---|---|---|---|---|---|---|---|
| Name | KKØ mm | C0a | C0r | Ca | Cr | C0m | Weight kg |
| LVG-200 | 200 | 309 | 124 | 39 | 39 | 12,4 | 4,10 |
| LVG-300 | 300 | 617 | 247 | 78 | 78 | 37,1 | 9,30 |
| LVG-400 | 400 | 827 | 331 | 90 | 90 | 66,2 | 12,40 |

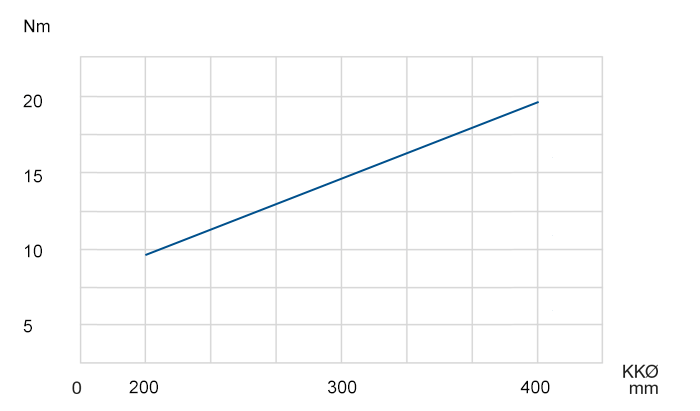

LVG_D

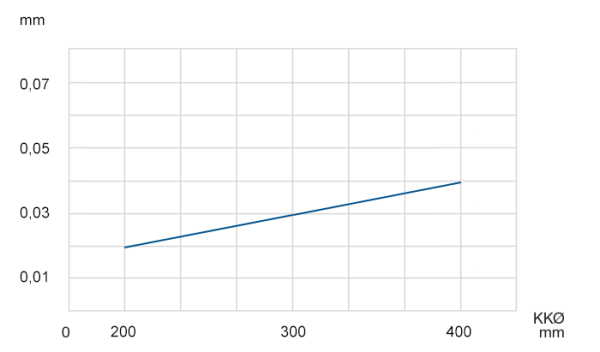

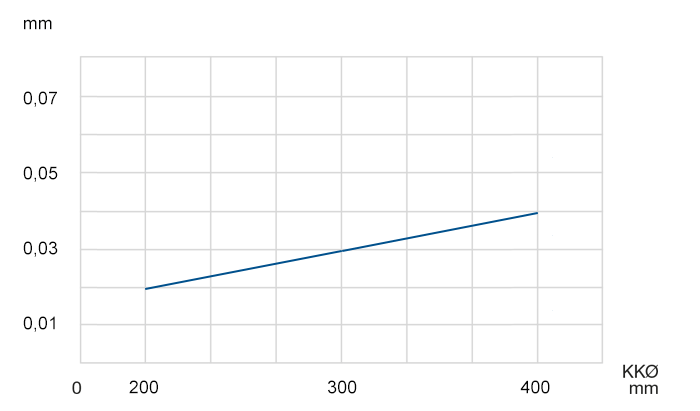

LVG_RP

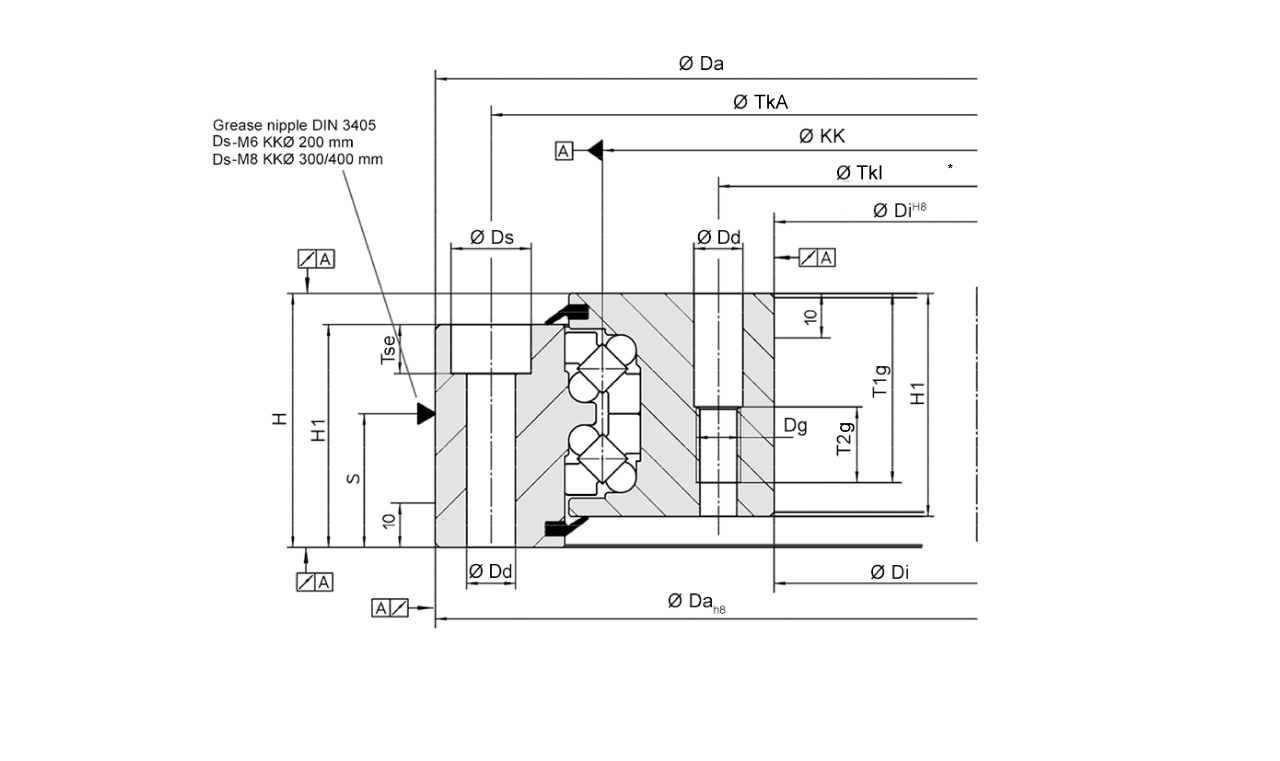

LVG_Z_E36o5owHZyNBt8

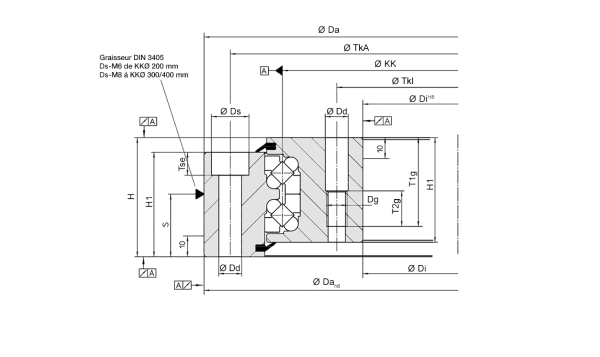

LVG_Z_FRucRQhupiK6Pb3
LVG_Z_ITTxOBsDs6xRYBu
