Bearing elements Type LEL

back to bearings product overview

Bearing with ground raceways

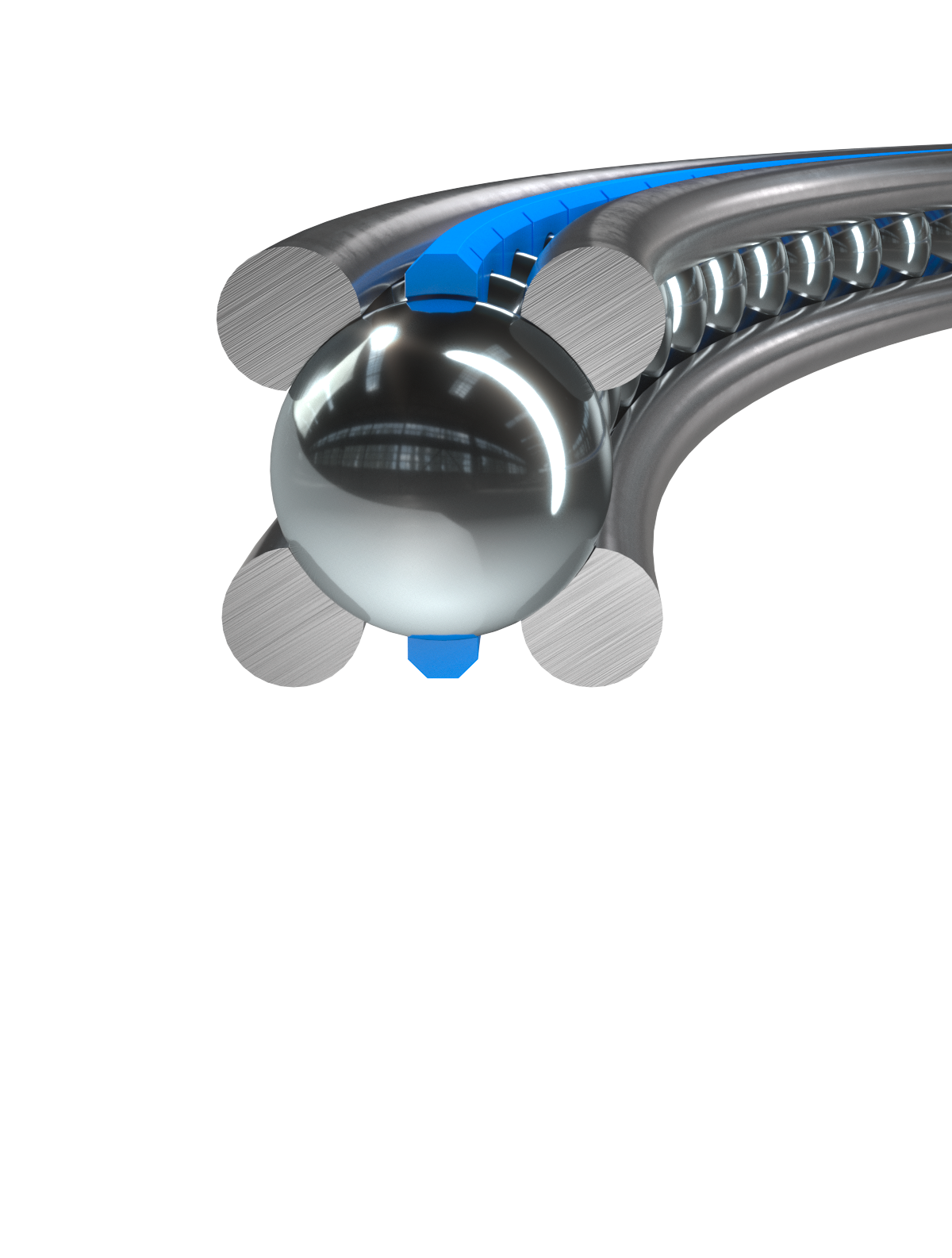

Ball bearing type LEL

Type Selection

Dimensions and Data Tables

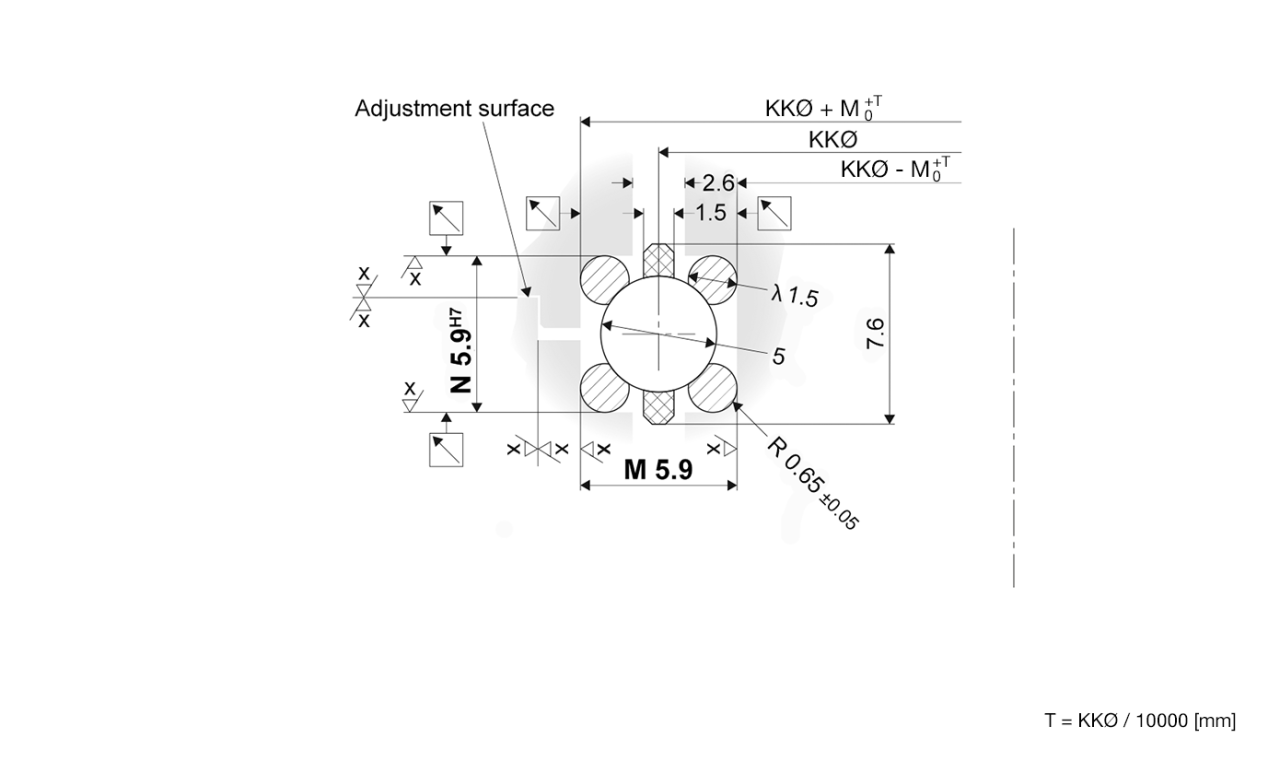

Bearing diameter KK

Special sizes on request

Unit price:		-,- EUR
Price		-,- EUR

Quantity

Description

Franke wire race bearings of type LEL are suitable for high demands on running characteristics and accuracy. Due to the hardened and CNC-ground raceway as well as the ideal geometrical adaptation of ball and raceway radius, they have outstanding bearing characteristics.

Wire race bearings of type LEL allow the greatest possible freedom of bearing design. The mounting space is between 5.9 mm and 20.9 mm. For special requirements, raceway thicknesses up to 20 mm and ball sizes up to 50 mm are possible.

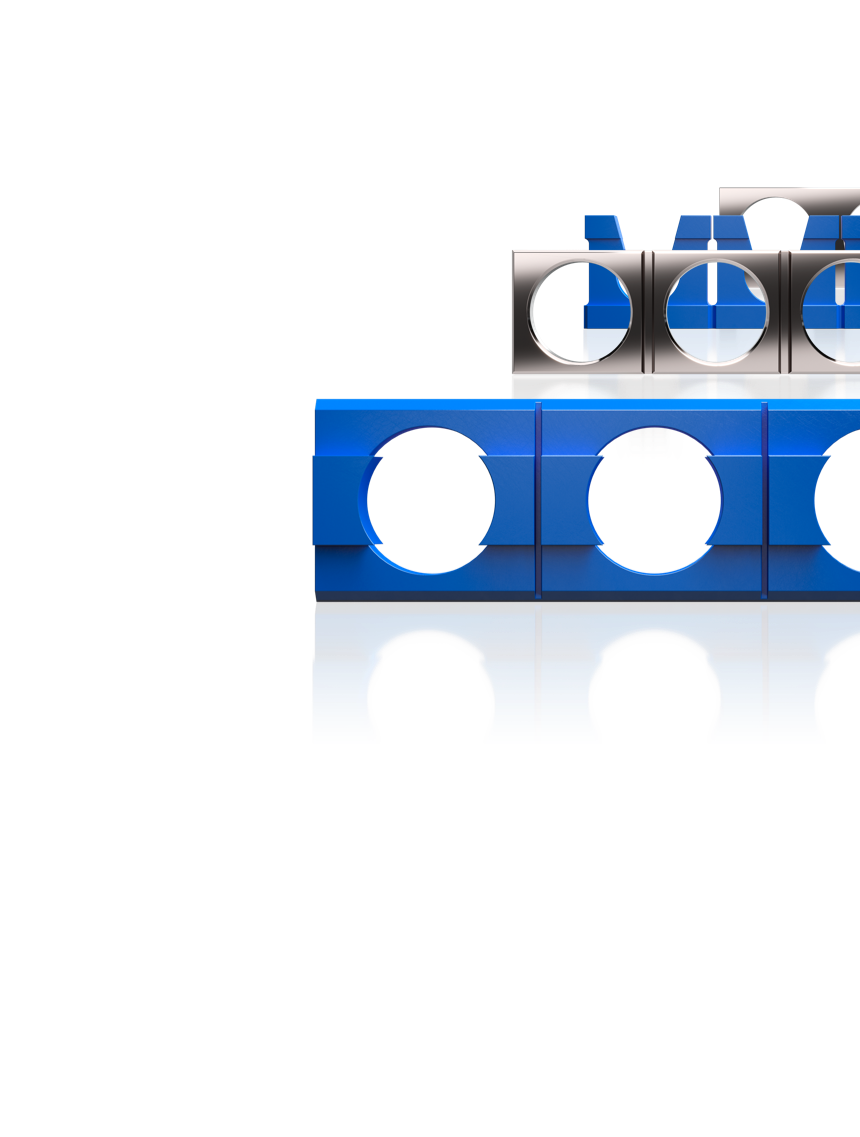

Material Ball race rings: hardened and tempered chrome-silicon steel Rolling element: hardened rolling bearing steel Cage: polyamide or thermoplastic polyurethane

Operating temperature –30 °C to +80 °C, briefly up to +100 °C

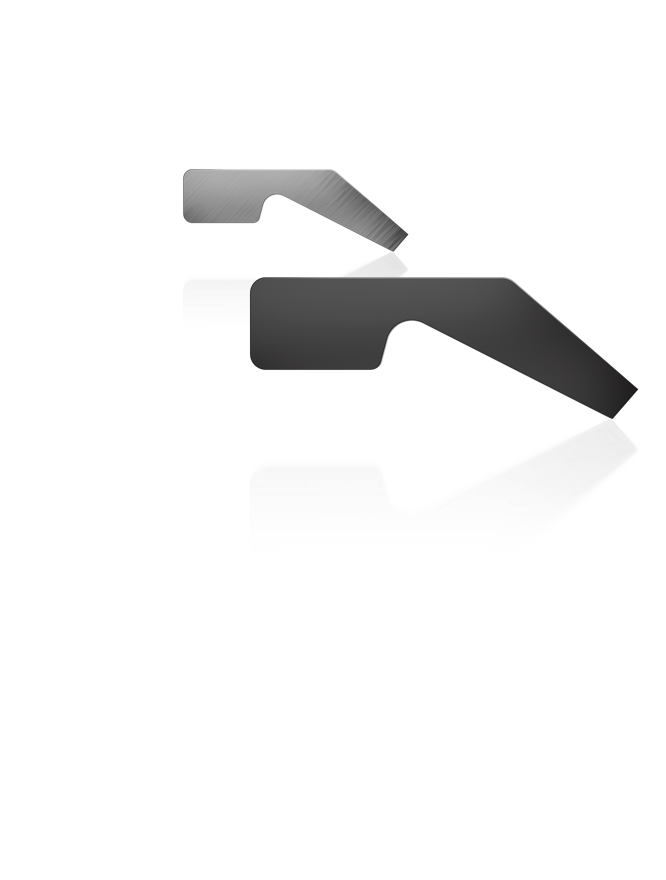

Peripheral speed Max. 5 m/s, without seals max. 10 m/s

Lubricant Klüber Isoflex Topas NCA52 (recommended)

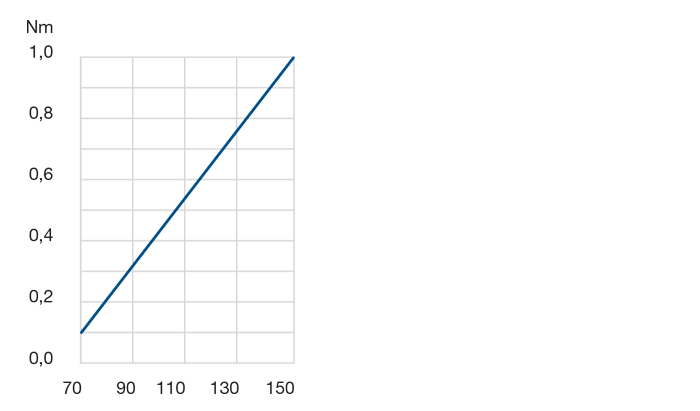

Smooth running

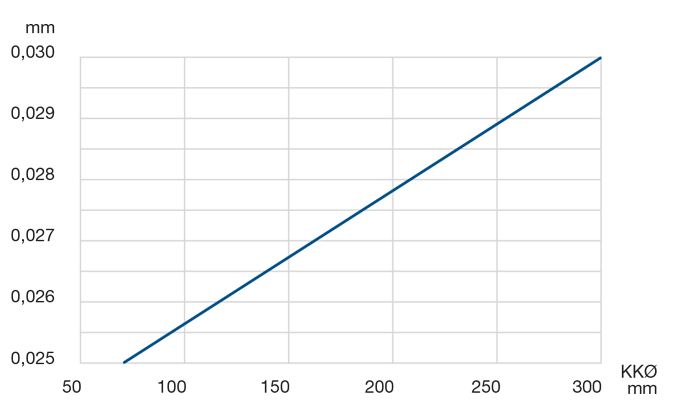

Accuracy
Speed
Stiffness
Assembly
Price

Data Table

		Load Ratings kn				Static Moment kNm
Name	KKØ mm	C_0a	C_0r	C_a	C_r	C_0m	Weight kg
LEL1.5-0070	70	14	6	8	8	0,2	0,03
LEL1.5-0080	80	16	7	8	8	0,3	0,03
LEL1.5-0090	90	18	8	8	8	0,4	0,04
LEL1.5-0100	100	19	9	9	9	0,5	0,04
LEL1.5-0110	110	21	10	9	9	0,6	0,04
LEL1.5-0120	120	23	11	9	9	0,7	0,05
LEL1.5-0130	130	26	12	10	10	0,8	0,05
LEL1.5-0140	140	28	13	10	10	0,9	0,06
LEL1.5-0150	150	30	14	10	10	1,0	0,06
