Thin section bearing type LSA

Slim Bearing with profiled raceways

Slim bearing type LSA

Unit price:		-,- EUR
Price		-,- EUR

Description

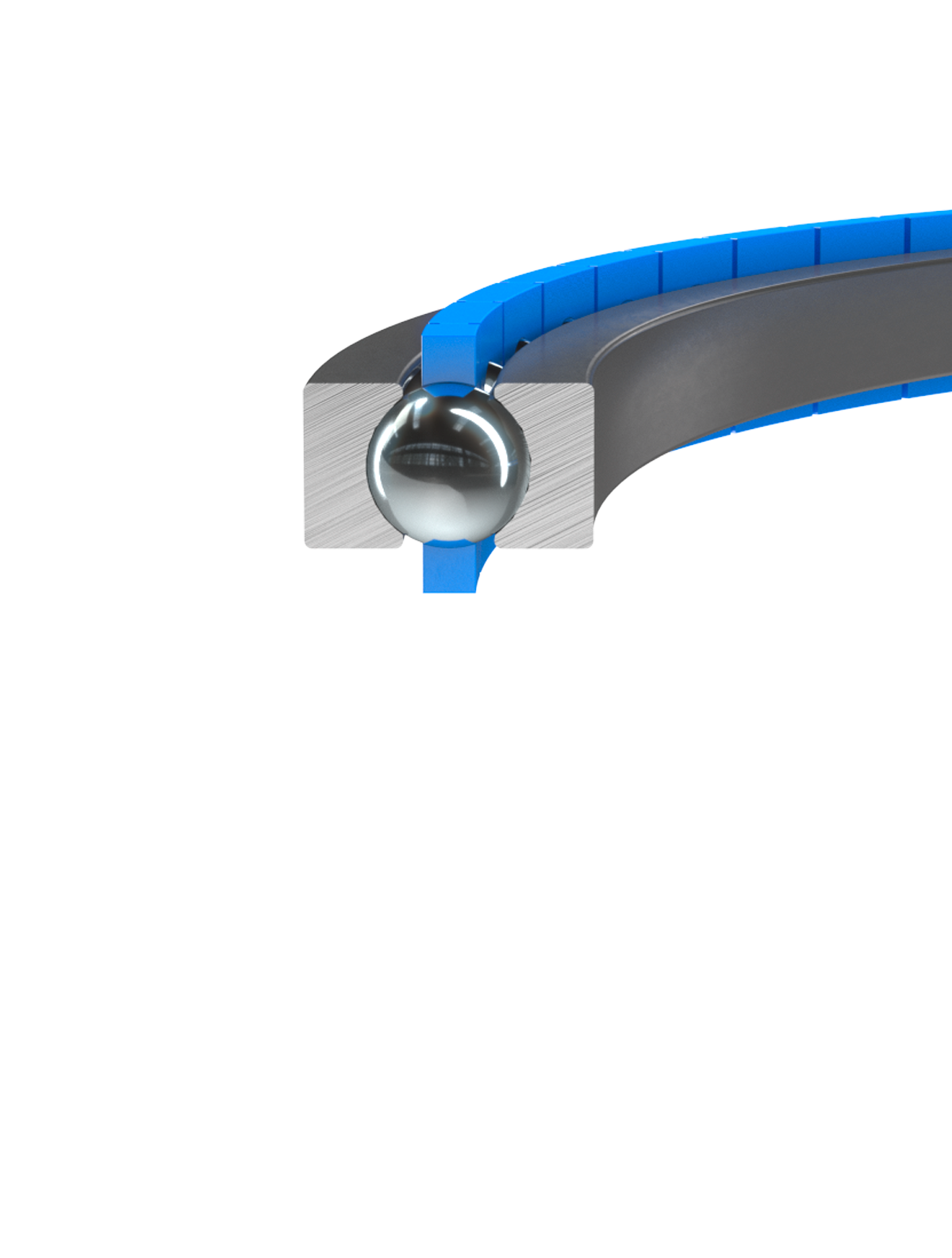

Franke slim bearings of the type LSA convince by their smooth running, extremely compact installation space, simple mounting and favourable price. Slim bearings of type LSA consist of an inner and outer race with hardened and profiled raceways and a plastic cage with retained balls. The rolling elements rest against the raceways at two points each, thus maintaining the 4-point system. The raceways are split and can therefore be changed elastically in diameter for installation.

Material Ball race rings: hardened and tempered chrome-silicon steel Rolling element: hardened rolling bearing steel Cage: polyamide or thermoplastic polyurethane

Operating temperature -20 °C to +80 °C, short-term up to +100 °C

Peripheral speed Max. 5 m/s, without seal max. 10 m/s

Lubricant Shell Gadus S3 V220 C2

Smooth running

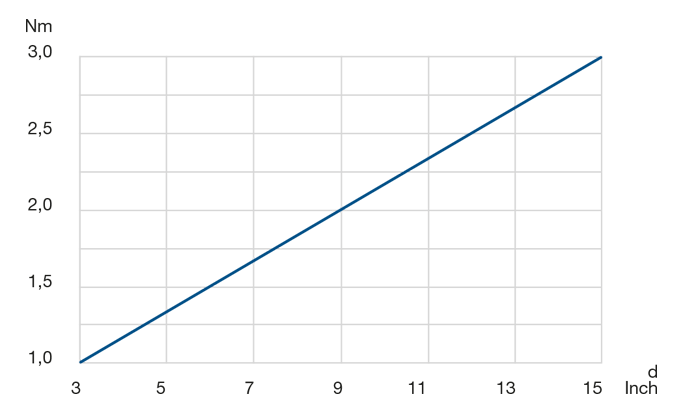

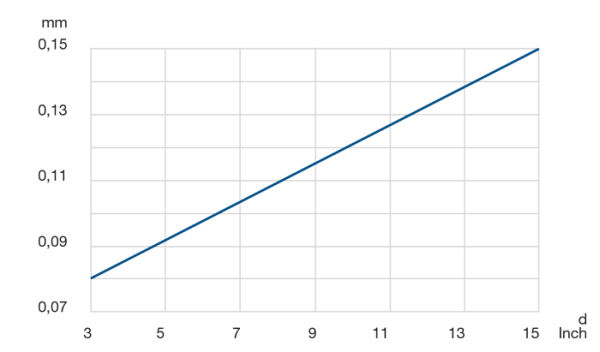

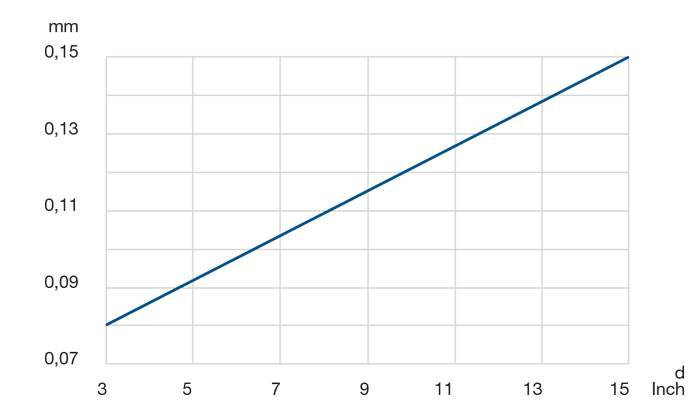

Accuracy
Speed
Stiffness
Assembly
Price

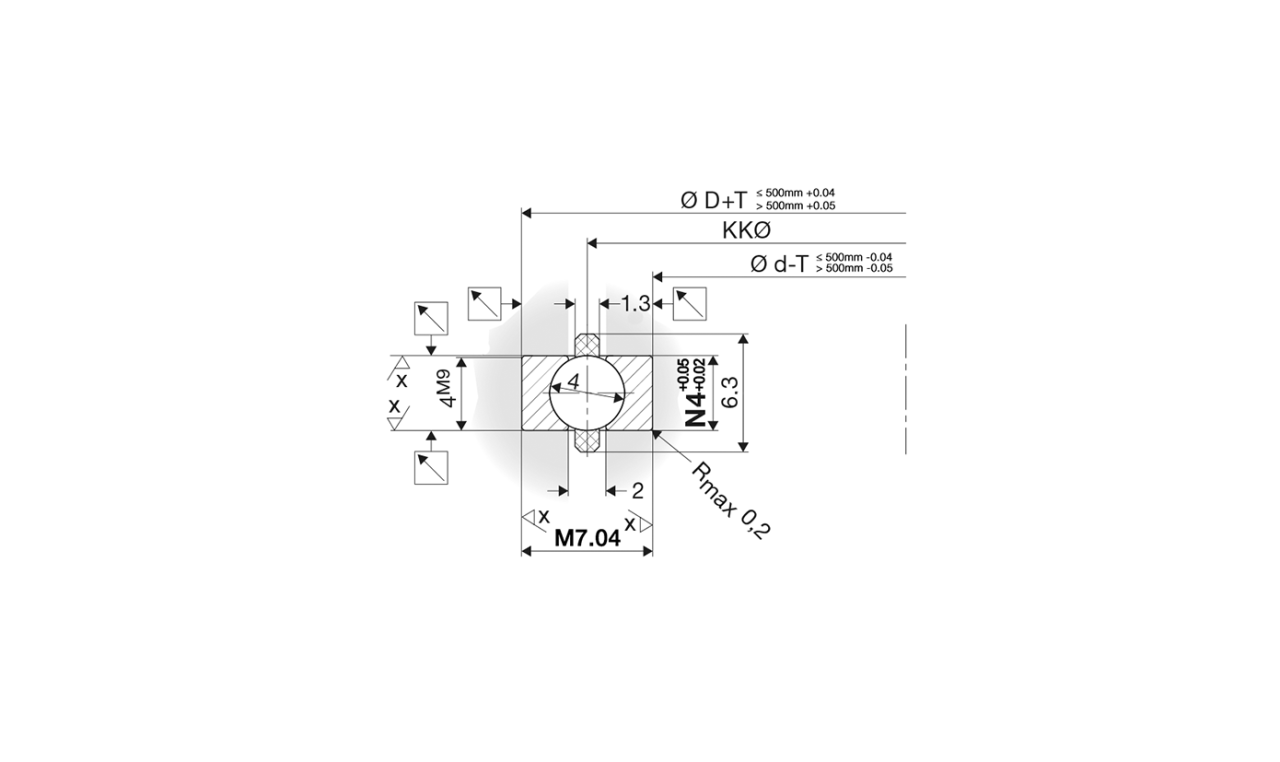

Data Table

		Load Ratings kn				Static Moment kNm
Name	KKØ mm	C_0a	C_0r	C_a	C_r	C_0m	Weight kg
LSA4-04.0	0	38	18	9	9	1,0	0,06
LSA4-04.5	0	42	20	9	9	1,2	0,07
LSA4-05.0	0	47	22	10	10	1,5	0,07
LSA4-05.5	0	51	24	10	10	1,8	0,08
LSA4-06.0	0	56	26	10	10	2,1	0,09
LSA4-06.5	0	61	28	11	11	2,5	0,09
LSA4-07.0	0	65	31	11	11	2,8	0,10
LSA4-07.5	0	70	33	11	11	3,2	0,11
LSA4-08.0	0	74	35	11	11	3,7	0,12
LSA4-08.5	0	79	37	12	12	4,1	0,12
LSA4-09.0	0	83	39	12	12	4,6	0,13
LSA4-09.5	0	88	41	12	12	5,1	0,14
LSA4-10.0	0	92	43	12	12	5,7	0,14
LSA4-11.0	0	102	48	13	13	6,8	0,16
LSA4-12.0	0	110	52	13	13	8,1	0,17
LSA4-13.0	0	119	56	14	14	9,5	0,19
LSA4-14.0	0	128	60	14	14	11,0	0,20
LSA4-15.0	0	138	65	14	14	12,6	0,21
