Corrosion-free, low-cost, ball bearing
Corrosion-free, LC, type FDG
| Unit price: |  |
-,- EUR |
| Price | |
-,- EUR |
Stroke length One piece from 200 mm to 4000 mm, connectable on request
Material Cassette plate, roller shoes, Rail body: aluminum, anodized Raceways: corrosion resistant steel Rollers: corrosion resistant bearing steel
Operating temperature −20 °C to +80 °C
Maximum speed 10 m/s
Mounting position Any
Lubricant Lifetime-lubricated, maintenance-free
| Roller: | Ball bearing |
| Raceway: | NIRO steel |
| Resilience | |
| Dynamics | |
| Corrosion resistant | |
| Non magnetic | |
| Lubricant free | |
| Price |

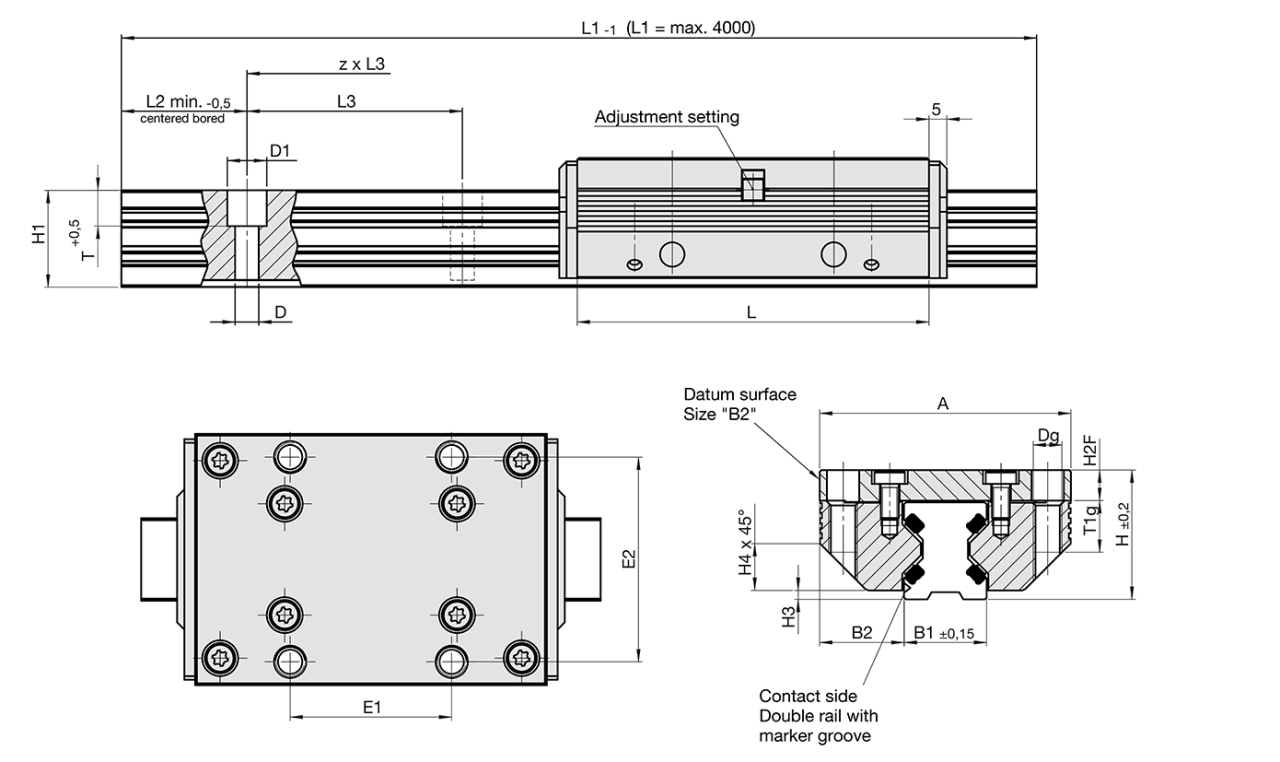

Data Table
| Size | Dimensions mm | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| A | L | H | B1 | B2 | D | D1 | Dg | E1 | |
| 12 | 37 | 1000 | 19 | 12 | - | - | - | M4 | 25 |
| 47 | - | 24 | - | - | - | - | M5 | 30 | |
| 63 | - | 30 | - | - | - | - | M6 | 40 | |
| 70 | - | 36 | - | - | - | - | M8 | 45 | |
| 100 | - | 48 | - | - | - | - | M10 | 62 | |
| 120 | - | 60 | - | - | - | - | M12 | 80 | |
| Size | Dimensions mm | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| E2 | H1 | H2F | H3 | H4 | L2 | L3 | T | T1g | |
| 12 | 30 | - | 4 | - | - | ? | 40 | ? | - |
| 38 | - | 5 | - | - | ? | - | ? | - | |
| 53 | - | 7 | - | - | ? | - | ? | - | |
| 57 | - | 8.5 | - | - | ? | - | ? | - | |
| 82 | - | 10.5 | - | - | ? | - | ? | - | |
| 100 | - | 13.5 | - | - | ? | - | ? | - | |

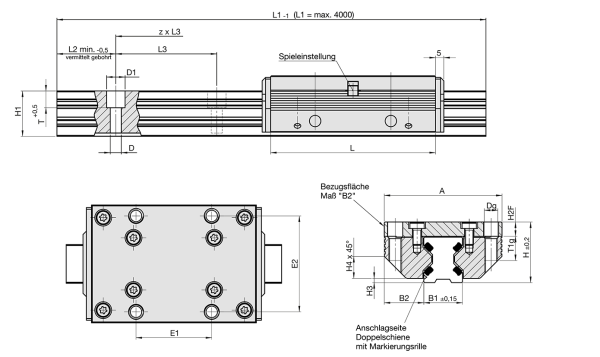

FDBG_Z_D_2021Leu5RoyL2fLX3
FDBG_Z_ES_2021PDkieVqlJrjaI

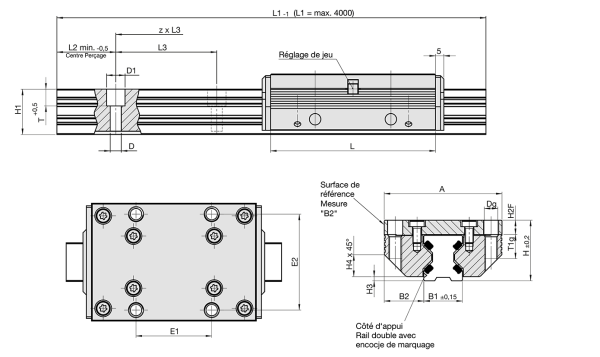

FDBG_Z_FR_2021iccSH3aE0sp5D
