The Franke-Principle
Four wires for better design
The decisive difference between an ordinary ball bearing and a Franke wire race bearing is in the raceways. In a wire race bearing, the rolling elements do not roll on solid housing rings, but on high performance wires. The flexibility of this principle makes it possible to design more freely and simply, in order to develop better products.
The Franke-Principle
Play video
It couldn't be
easier or more compact
In a wire race bearing, highly resilient bearing rings made of wire assume the function of the bearing arrangement. This saves weight and space. The free choice of material and the free design of the enclosing structure also allow the weight of the overall product to be reduced considerably.
Runs precisely.
And runs precisely.
And runs precisely.
In wire race bearings, the raceways of the rolling elements are precisely matched to the diameter of the rolling elements. This ensures optimum functional characteristics and guarantees both, precise running and a long operating life.

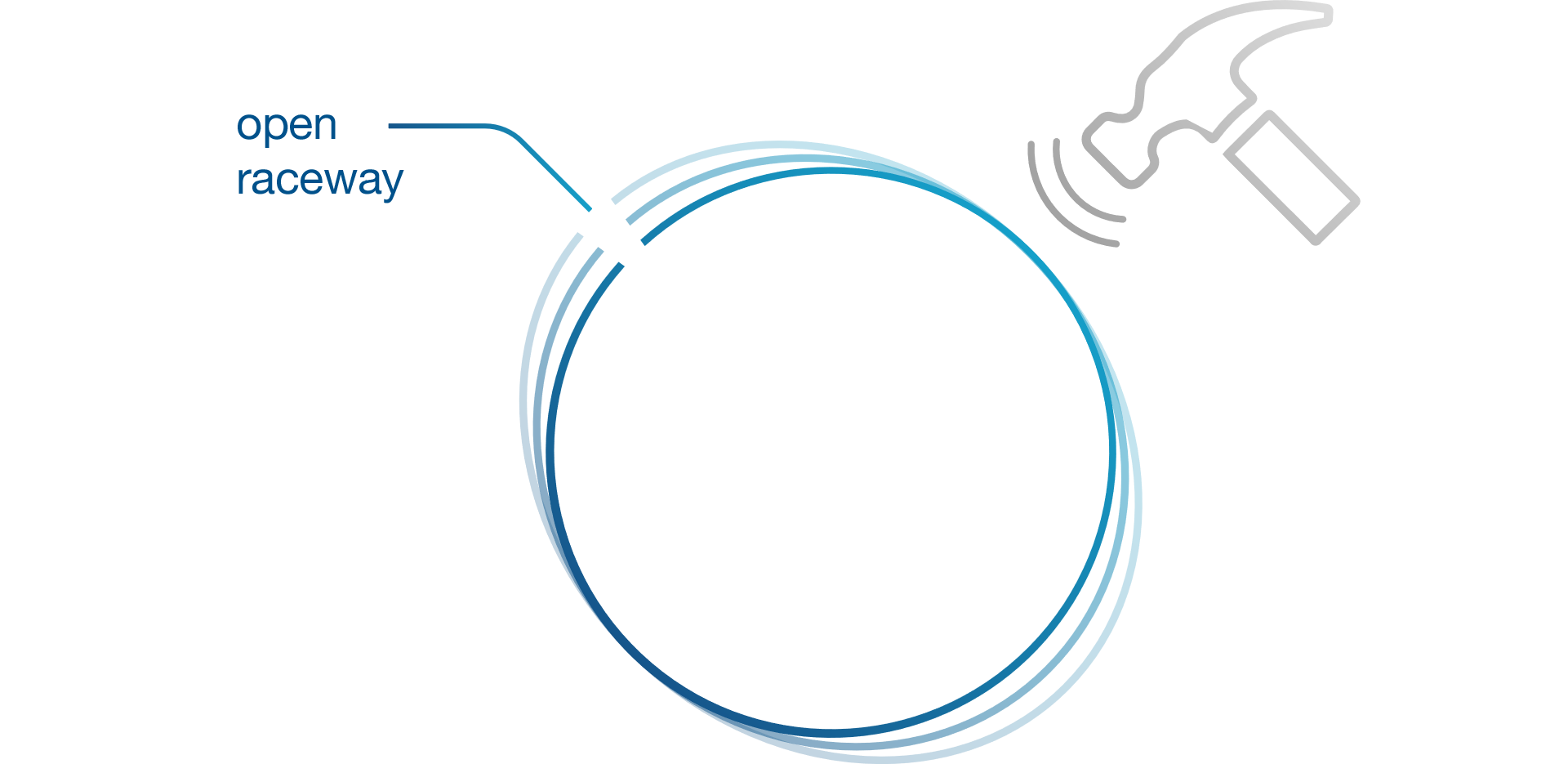

Shock and impact elastic
The races of Franke wire race bearings are made of hardened spring steel. Shocks and vibrations are absorbed by them. The result: a high resistance against such disturbing influences.
Compensates deformations
Slight deformations of the enclosing structures, for example due to temperature changes, are compensated by the flexible Franke bearing element. Where other roller bearings fail, the Franke bearing continues to roll.
No bearing play. Adjustable rotational resistance.
Does your application focus on dynamics or precision? Or does a good compromise have to be found? The rotational resistance of a wire race bearing is adjustable. Suitable for each application. At any time.
Possibilities
instead of
specifications
Franke bearing elements can be used in a wide variety of designs. The demands on the enclosing construction are low, because it is not directly exposed to the loads. The main load is borne by the wire race bearing. This allows you to determine almost freely the ideal shape and material of your further construction.
Anything you wish.
Only what you need.
You can purchase from Franke only the bearing elements or ready-to-install bearing assemblies. On request in customer-specific design, with toothing or with integrated torque motor.
Bearing Elements
All you need for your product solution with wire race bearings is a Franke bearing element. Franke bearing elements can be integrated directly into your design. You can easily assemble them yourself. The bearing element can be adapted in form and material bespoke to your requirements, for example by choosing amagnetic ceramic rolling elements.
Bearing Assemblies
If required, we can also design and manufacture complete bearing assemblies for you. These can be mounted even more easily than bearing elements. Franke bearing assemblies are available in every size, with individual bores and toothings and in numerous materials such as aluminium, stainless steel, carbon or as a 3D printed housing.
Rotary Tables/Systems
You prefer a complete solution from one source? Franke offers complete customized positioning and drive units, optionally with proximity switch, coupling and motor. Systems with direct drive are a particular strength of Franke. They are used, for example, in many computer tomographs of renowned manufacturers.
Super Individual
Wire race bearings will have superpowers – if you need them:
amagnetic
food-compatible
highly dynamic
lubricant free
suitable for cleanrooms
extremely cold and heat resistant
corrosion resistant
lightweight
Rolling element
Ball
Cylinder roller
Rolling element material
Steel
Non-corrosive
Ceramics
Coatings (ATC)
Raceway geometry
Ground
raceways
Profiled
raceways
Slim bearings
4-point
contact bearing
Angular contact ball bearing
Raceway material
Hardened
spring steel
Non-corrosive
Amagnetic
Coatings (Dicronite, FE-Zn)
Cages
Standard cage
Band cage
Comb cage
Flat cage
Roller Cage
Cage segment
Cage material
Plastics
PEEK
Teflon
Hard Fabric
Non-corrosive
Brass
Lubricants
Standard lubricant
Food compatible
Special lubricant
Lubricant free
Surrounding construction
Free design - examples
Free choice of material - examples
Steel
Non-corrosive
Cast
Aluminium
Bronze
Plastics
Carbon
Special coatings
Anodizing
Hard anodizing
Zinc Iron
Electroless nickel
Burnished
Galvanically
phosphated
SurTec
Gearings
Outer ring
with teeth
Inner ring
with teeth
Inner and outer ring
with teeth
Types of gearing
Straight Gear
Helical Gear
Toothed Belt Gear
Worm Gear
Special Gear
Sealing
Perbunan
(Standard)
Viton
Types of seals
Labyrinth seal
Ring spring seal
Radial shaft seal
Light spring seal
High pressure seal
Ø from 40 to 2000 mm.
Stepless.
Franke manufactures wire race bearings in any desired diameter between 40 mm and 2000 mm. We supply both individual and series requirements at attractive conditions.
Available from lot size 1
Franke is flexible - also with regard to the lot size. We develop and manufacture individual bearing elements, bearing assemblies and ready-to-use drive solutions for you from lot size 1.
From the idea to your bearing solution - we are always at your side
- Comprehensive consulting
- Presentation of the Franke system - at your place or ours
- Supply of sample parts
- Individual development
- Prototyping and testing
- Assembly training
- Maintenance services, e.g. retreading of bearing assemblies
Let us advise you!
From a Franke expert via video-chat, at your site or at our premises.
