Linear technology

Linear technology is a field of mechanics that deals with implementing precise and controlled linear movements. It plays a central role in automation technology, mechanical engineering, medical technology and many other industries. Linear technology enables movements along a straight axis, which is essential for the precise positioning of workpieces or components. The basic elements include linear bearings, linear motors, screw drives and above all linear guides, which act as central components in most applications.

Design and function of linear technology

The essential components of linear technology comprise guide systems, drive systems and motion elements:

  • Guide systems: They usually consist of one or more guide rails on which a moving element such as a slide or carriage moves. The rails are often made of hardened steel, at Franke of aluminium with inserted raceways made of spring steel. Guide systems are decisive for the accuracy and repeatability of movements.
  • Drive systems: Screw drives, toothed belt drives or linear motors move the motion element along the guide rail. Depending on the requirements, they can handle different speeds and loads.
  • Motion elements: Rolling elements or running rollers transmit the movement with low friction, for example recirculating ball units or running rollers with ball bearings or needle bearings. There are also plain guides without rolling elements.

Linear technology at Franke

Since 1970, Franke has applied the principle of the wire race bearing to linear movements. Raceways made of spring steel are inserted into the aluminium profile rail, and running rollers with needle bearings or ball bearings roll on them. The raceways take up the loads, so the rest of the construction can be made of lightweight aluminium. The Franke principle linear guide shows more.

Properties of Franke linear guides

  • Weight: base bodies made of aluminium halve the weight compared with conventional steel guides and need only a fraction of the drive energy, see Franke linear guides in lightweight design.
  • maintenance free: the bearings of the running rollers are lifetime lubricated, and lubricant free roller bearings are available for food applications.
  • quiet: a homogeneous, quiet hum instead of running noise, suitable for noise sensitive applications.
  • suited to aluminium constructions: the same material means no temperature related distortion.
  • individual: rail profiles, carriages, overall length as well as number and arrangement of the running rollers can be adapted.

Applications

Franke linear guides are used, among other things, in automation technology, in packaging machines, in medical technology and in robots and handling.

Frequently asked questions about linear technology

What is meant by linear technology?

The field for guided, straight movements. It includes linear guides, drives such as screw, toothed belt or linear motor and the motion elements in between.

Which components does a linear system consist of?

A guide system with rail and carriage, a drive and the rolling elements or running rollers that transmit the movement.

How are Franke linear guides designed?

Rails and carriages are made of aluminium. Running rollers with needle bearings or ball bearings roll on inserted raceways made of spring steel.

Do Franke linear guides need maintenance?

No. The bearings of the running rollers are lifetime lubricated, and the guide is maintenance free over its entire service life.

Why do aluminium linear guides suit aluminium constructions?

Guide and machine expand equally when the temperature changes. This prevents distortion.

More on this topic in the Franke glossary: Linear guide: types, design and selection

Franke also manufactures linear guides individually to your specifications: Individual linear guides

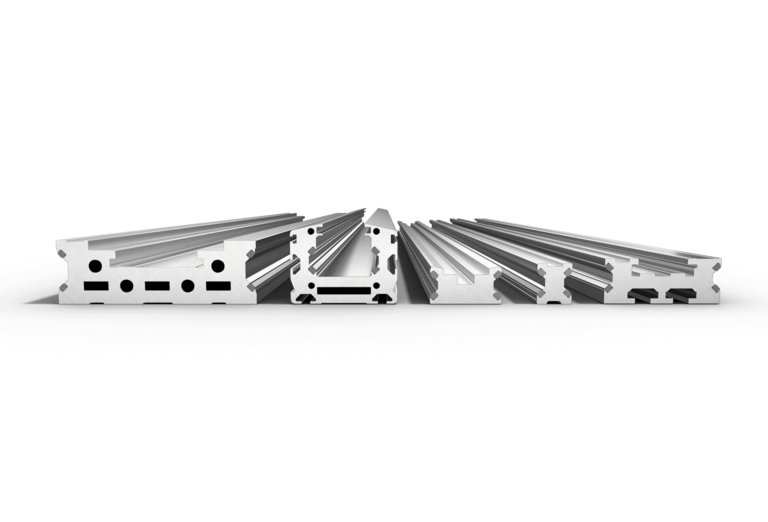

Linear guide profiles and linear rails
